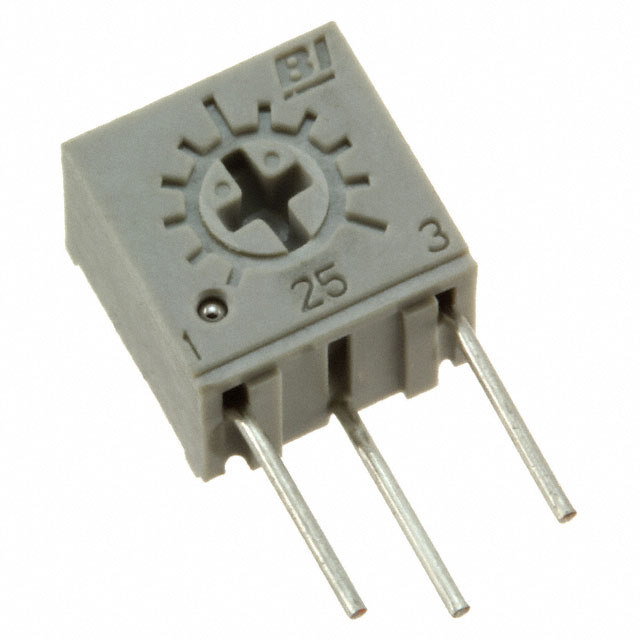

25SR10KLF

Active

TT Electronics/BI

TRIMMER 10K OHM 0.5W PC PIN SIDE

Search across all available documentation for this part.

Active

TT Electronics/BI

TRIMMER 10K OHM 0.5W PC PIN SIDE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment

Technical documentation and resources

Part	Mounting Type	Power (Watts)	Power (Watts)	Tolerance	Number of Turns	Adjustment Type	Termination Style	Resistive Material	Resistance	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
TT Electronics/BI 25SR100LF	Through Hole	0.5 W	0.5 W	10 %	1	Side Adjustment	PC Pins	Cermet	100 Ohms	100 ppm/°C
TT Electronics/BI 25SR20KLF	Through Hole	0.5 W	0.5 W	10 %	1	Side Adjustment	PC Pins	Cermet	20 kOhms	100 ppm/°C
TT Electronics/BI 25SR200LF	Through Hole	0.5 W	0.5 W	10 %	1	Side Adjustment	PC Pins	Cermet	200 Ohms	100 ppm/°C
TT Electronics/BI 25SR10KLF	Through Hole	0.5 W	0.5 W	10 %	1	Side Adjustment	PC Pins	Cermet	10000 Ohms	100 ppm/°C	0.27 in	6.86 mm	0.27 in	6.86 mm
TT Electronics/BI 25SR200KLF	Through Hole	0.5 W	0.5 W	10 %	1	Side Adjustment	PC Pins	Cermet	200000 Ohms	100 ppm/°C
