1-1103635-1
ActiveTE Connectivity AMP Connectors

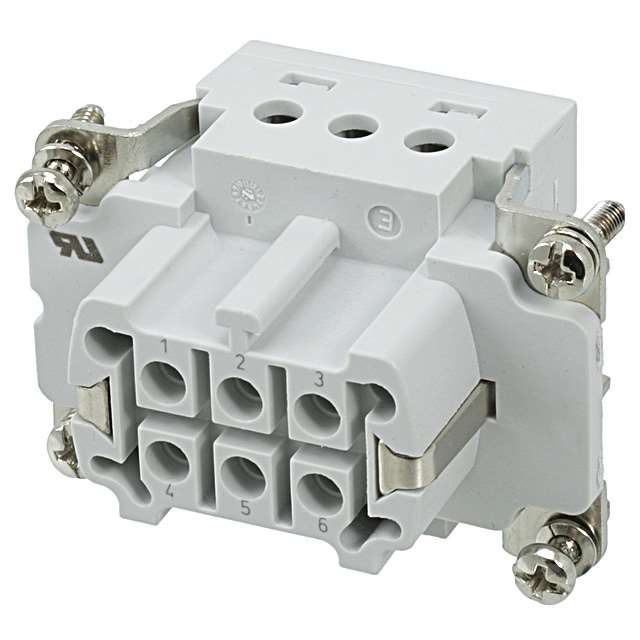

INSERT FEMALE 6POS+1GND SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1103635-1
ActiveTE Connectivity AMP Connectors
INSERT FEMALE 6POS+1GND SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1103635-1 | 1103635 Series |
|---|---|---|
| Color | Gray | Gray |
| Connector Type | - | Insert without Contacts |
| Contact Finish | Silver | Silver |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Female | Female |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 6+Ground | 6+Ground |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 3 | 3 |
| Termination Style | Screw | Screw, Crimp |
| Voltage Rating | 400 V | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.00 | |
| 10 | $ 34.66 | |||
| 100 | $ 29.77 | |||
1103635 Series
INSERT FEMALE 6POS+1GND SCREW
| Part | Voltage Rating | Current Rating (Amps) | Contact Material | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Size | Termination Style | Gender | Color | Material Flammability Rating | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1103635-1 | 400 V | 16 A | Brass | Silver | 125 °C | -40 °C | 3 | Screw | Female | Gray | UL94 V-0 | 6+Ground | |
TE Connectivity AMP Connectors 2-1103635-3 | 400 V | 16 A | 125 °C | -40 °C | 3 | Crimp | Female | Gray | UL94 V-0 | 6+Ground | Insert without Contacts |
Description
General part information
1103635 Series
Female Insert Gray 6+Ground Position Screw
