WALL MOUNT RECEPTACLE
MSW00A12-10P-SR
ActiveMilspecwest, LLC
WALL MOUNT RECEPTACLE
Description
General part information
MSW00A12-10P-SR

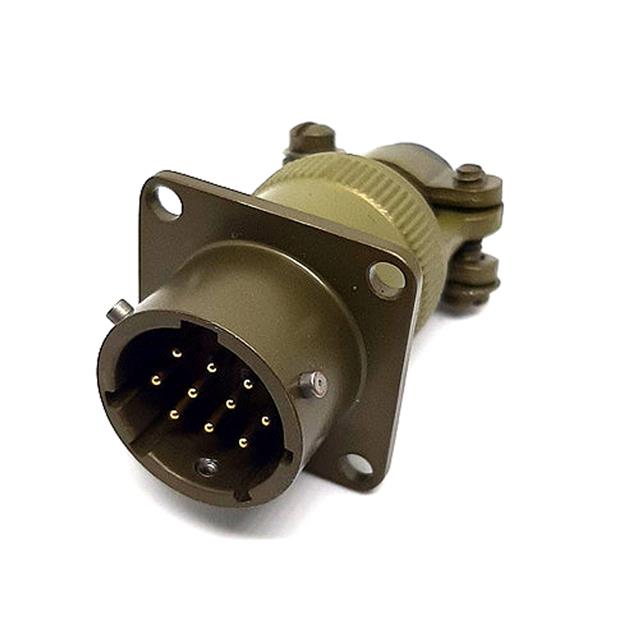

10 Position Circular Connector Receptacle, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW00A12-10P-SR |
|---|---|
| Applications | Military |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Cadmium |
| Current Rating | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 10 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Finish | Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 12 mm |
| Shell Size - Insert Width | 10 mm |
| Termination | Solder |
| Voltage Rating | 800 V |
