770429-1

Active

TE Connectivity AMP Connectors

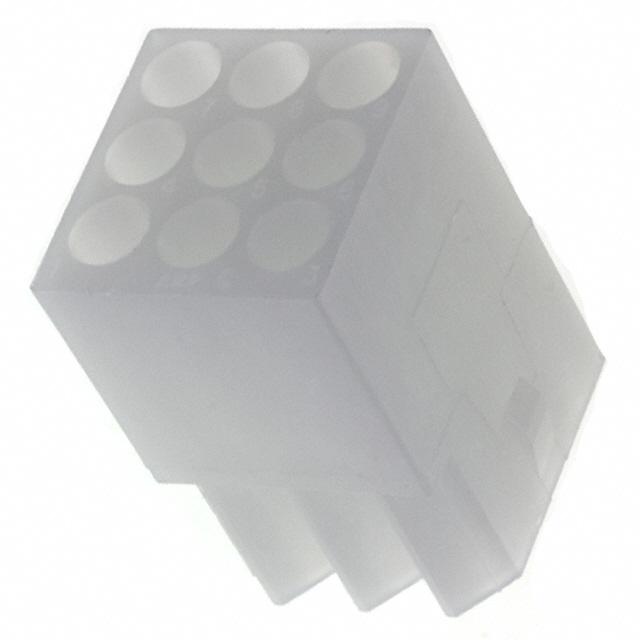

CONN RCPT HSG 9POS 3.68MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 9POS 3.68MM

Technical Specifications

Parameters and characteristics for this part

CONN RCPT HSG 9POS 3.68MM

Part	Contact Termination	Row Spacing	Row Spacing	Color	Number of Rows	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions	Note	Mounting Type	Insulation Material	Contact Type	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 770429-1	Crimp	3.68 mm	0.145 in	Natural	3	Receptacle	105 ░C	-55 °C	Locking Ramp	9	Contacts Not Included	Free Hanging (In-Line)	Nylon, Polyamide (PA)	Male or Female	3.68 mm	0.145 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Rectangular Connectors - Housings Receptacle Natural 0.145" (3.68mm)
