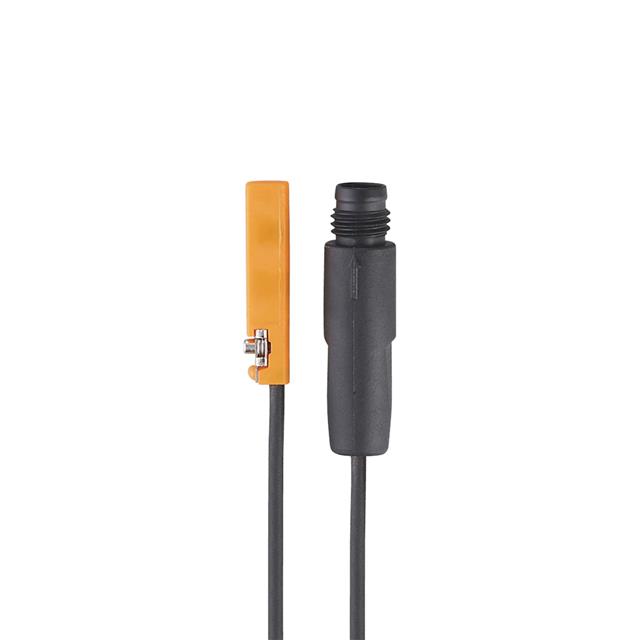

MK5310
Activeifm efector, inc.
CYLINDER SENSOR,C-SLOT MOUNTING,
MK5310
Activeifm efector, inc.
CYLINDER SENSOR,C-SLOT MOUNTING,
Description
General part information
MK5310
Digital Switch Special Purpose PNP-NO Magnetoresistive
Technical Specifications
Parameters and characteristics for this part
| Specification | MK5310 |
|---|---|
| Current - Output (Max) | 100 mA |
| Current - Supply (Max) | 10 mA |
| Function | Special Purpose |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO |
| Package / Case | Module |
| Polarization | South Pole |
| Sensing Range | 2.8 mT |
| Technology | Magnetoresistive |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
