Description
General part information
09456000342

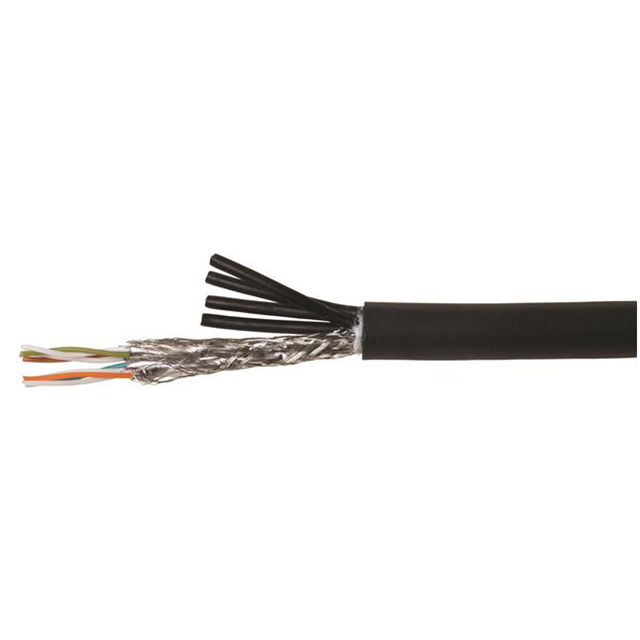

8 (2 Twisted Pairs + 4) Conductor Multi-Pair, Cat6 Cable Black 1.50mm˛, 26 AWG 164.0' (50.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 09456000342 |
|---|---|
| Cable Type | Cat6, Multi-Pair |
| Conductor Arrangement | 2 Twisted Pairs, 4 |
| Features | UV Resistant |
| Jacket (Insulation) Diameter | 0.418 in |
| Jacket (Insulation) Material | Polyurethane Reactive (PUR) |
| Jacket Color | Black |
| Length | 164 ft |
| Number of Conductors | 8 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | Style, UL, 21523 |
| Wire Gauge | 26 AWG |
| Wire Gauge (Cross-Sectional Area) | 1.5 mm² |
