634-M44-363-BT6

634-M44-363-BT6

Active
EDAC Inc.

634M SERIES RIGHT ANGLE D-SUB

Find alt
634-M44-363-BT6

634-M44-363-BT6

Active
EDAC Inc.

634M SERIES RIGHT ANGLE D-SUB

Find alt

Description

General part information

634-M44 Series

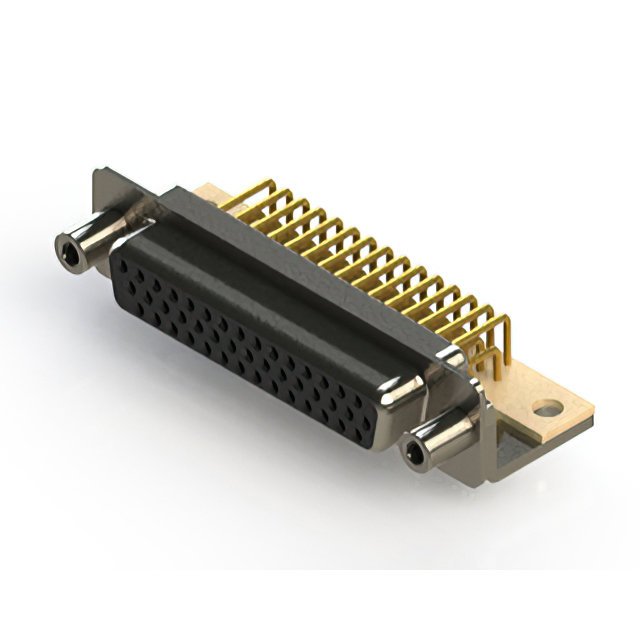

44 Position D-Sub, High Density Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification634-M44-363-BT6
Backset Spacing0.35 in
ColorBlack
Connector LayoutDB, B, High Density
Connector StyleHigh Density, D-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish Thickness15 µin
Contact FormMachined
Contact MaterialCopper Alloy
Contact TypeSignal
Current Rating (Per Contact)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
FeaturesShielded, Mounting Brackets
FinishTin Plated
Flange FeatureMating Side (4-40)
Material Flammability RatingUL94 V-0
Mounting TypeRight Angle, Through Hole, Board Edge
Number of Positions44
Number of Rows3
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Shell MaterialSteel
Shell Size3
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

634-M44-363-BT6 | Datasheet
