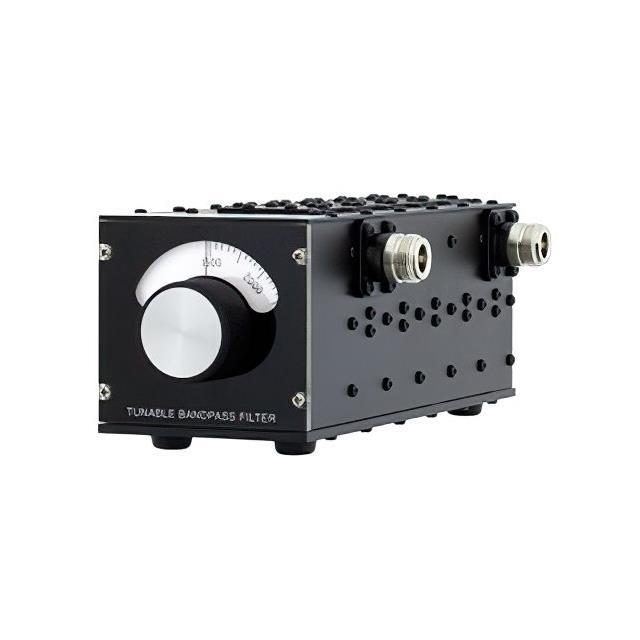

PE8733
ActivePasternack
RF FILTER BAND PASS 2.25GHZ MOD
PE8733
ActivePasternack
RF FILTER BAND PASS 2.25GHZ MOD
Description
General part information
PE8733
2.25GHz Center Frequency Band Pass RF Filter (Radio Frequency) 1.5GHz Bandwidth 1dB Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE8733 |
|---|---|
| Bandwidth | 1.5 GHz |
| Filter Type | Band Pass |
| Frequency (Center) | 2.25 GHz |
| Height (Max) | 3 in |
| Insertion Loss | 1 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Size / Dimension Length | 7.252 in |
| Size / Dimension Width | 2.87 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
