FA11NP02A683JNU00
ActiveTDK Corporation

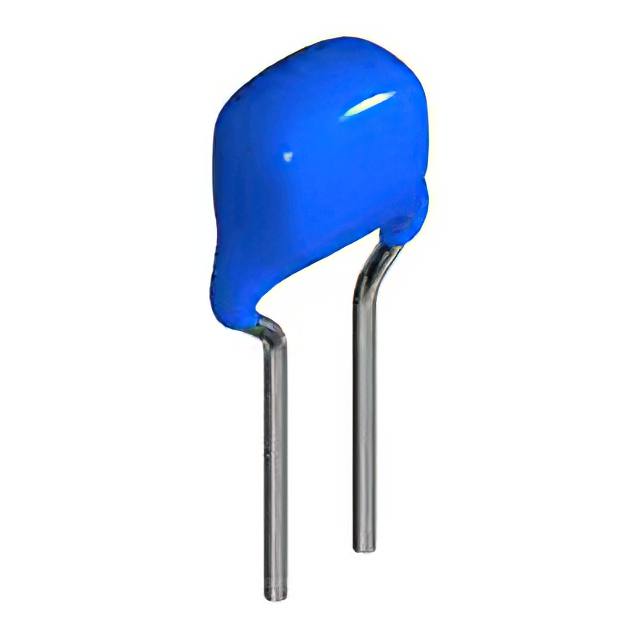

CAP CER 0.068UF 100V NP0 RADIAL
FA11NP02A683JNU00
ActiveTDK Corporation
CAP CER 0.068UF 100V NP0 RADIAL
Description
General part information
FA11NP02A683JNU00
0.068 µF ±5% 100V Ceramic Capacitor C0G, NP0 Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | FA11NP02A683JNU00 |
|---|---|
| Applications | Automotive |
| Capacitance | 0.068 µF |
| Features | High Temperature |
| Height - Seated (Max) | 0.276 in |
| Lead Spacing | 0.098 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.217 in |
| Size / Dimension Width | 0.157 in |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 5 % |
| Voltage - Rated | 100 VAC/DC |
