PET-04-02-L-RA-SD
ActiveSamtec Inc.
CONN HDR 4POS 6.35MM R/A SLDR
PET-04-02-L-RA-SD
ActiveSamtec Inc.
CONN HDR 4POS 6.35MM R/A SLDR
Description
General part information
PET-04-02-L-RA-SD

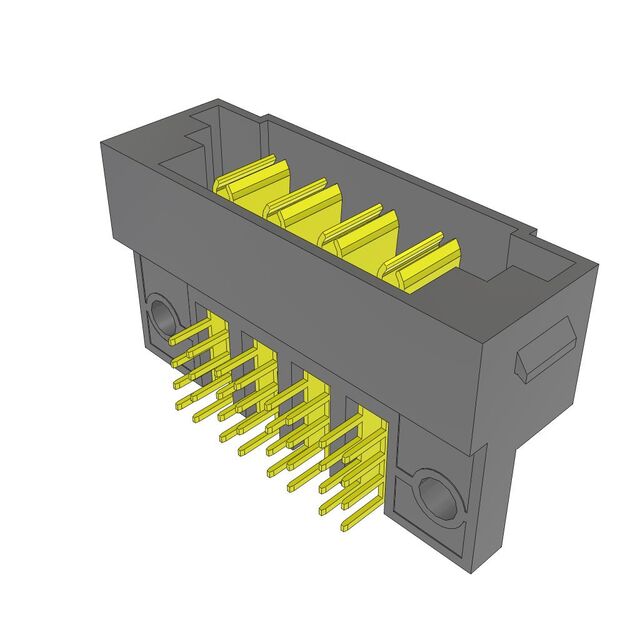

4 Position Header, Male Blades Connector Solder 0.250" (6.35mm) Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | PET-04-02-L-RA-SD |
|---|---|
| Color | Black |
| Connector Type | Male Blades, Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Copper Alloy |
| Current Rating | 58.7 A |
| Fastening Type | Locking Ramp |
| Features | Flange |
| Material - Insulation | LCP, Liquid Crystal Polymer |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Pitch | 0.25 in |
| Termination | Solder |
| Voltage Rating | 1025 V |
