B33331V7605J080
ActiveEPCOS - TDK Electronics
CAP FILM 6UF 5% 460VAC RADIAL
B33331V7605J080
ActiveEPCOS - TDK Electronics
CAP FILM 6UF 5% 460VAC RADIAL
Description
General part information
B33331V7605J080

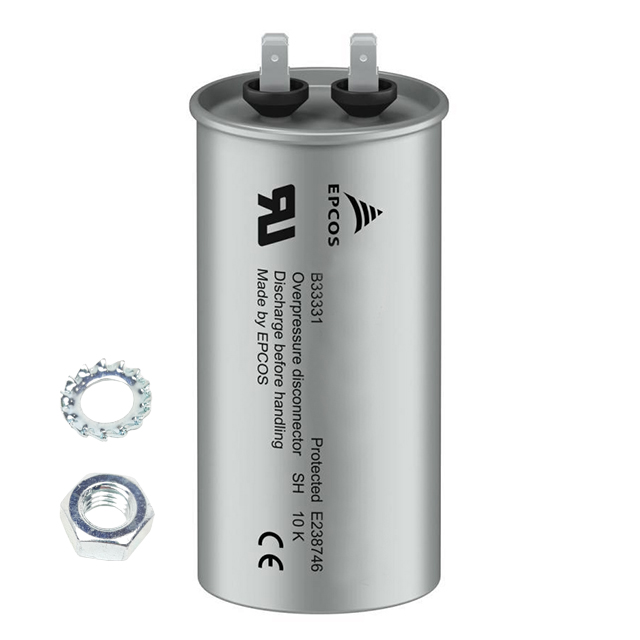

6 µF Film Capacitor 460V Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | B33331V7605J080 |
|---|---|
| Applications | General Purpose |
| Capacitance | 6 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 21 mOhm |
| Height - Seated (Max) | 2.638 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 1.181 in |
| Termination | Quick Connect |
| Termination Probe Tip OD | 0.25 in |
| Tolerance | 5 % |
| Voltage Rating - AC | 460 V |
