MCZ2010AH900T000
ObsoleteTDK Corporation
CMC 100MA 4LN 90 OHM SMD
MCZ2010AH900T000
ObsoleteTDK Corporation
CMC 100MA 4LN 90 OHM SMD
Description
General part information
MCZ2010AH900T000

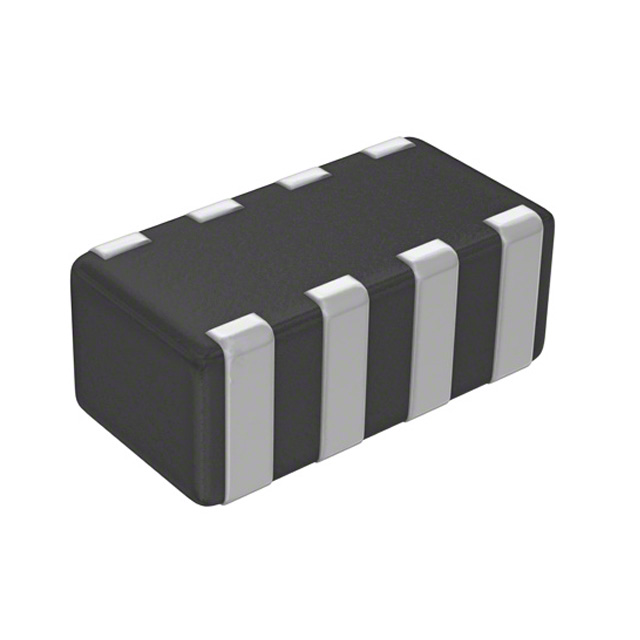

4 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 100mA DCR 1.5Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | MCZ2010AH900T000 |
|---|---|
| Current Rating (Max) | 100 mA |
| DC Resistance (DCR) (Max) | 1.5 Ohm |
| Filter Type | Signal Line |
| Height (Max) | 0.024 in |
| Impedance | 90 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 8 Leads |
| Package Name | 0804 (2010 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.039 in |
| Voltage Rating - DC | 5 V |
