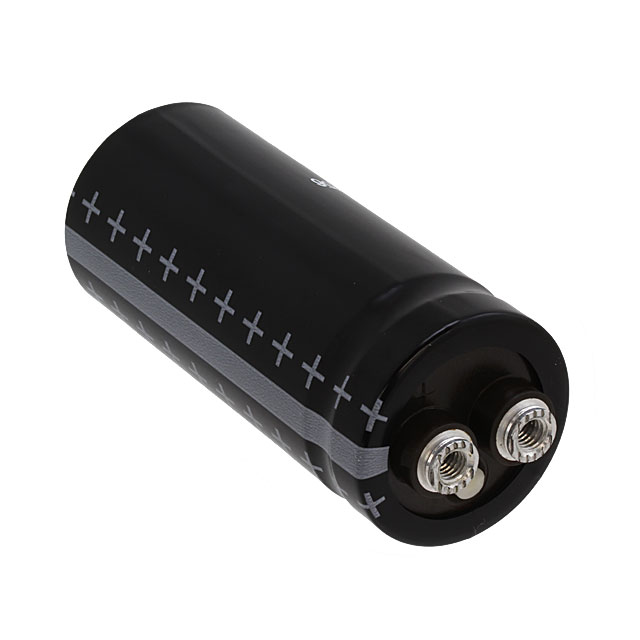

Specification	B41560A5229M000

Applications	General Purpose
Capacitance	22000 µF
ESR (Equivalent Series Resistance)	29 mOhm
Height - Seated (Max)	3.217 in
Impedance	22 mOhms
Lead Spacing	0.5 in
Lifetime	3000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	7.4 A
Size / Dimension Diameter	1.406 in
Tolerance	20 %
Voltage - Rated	25 VAC
