261-212
ActiveWAGO Corporation

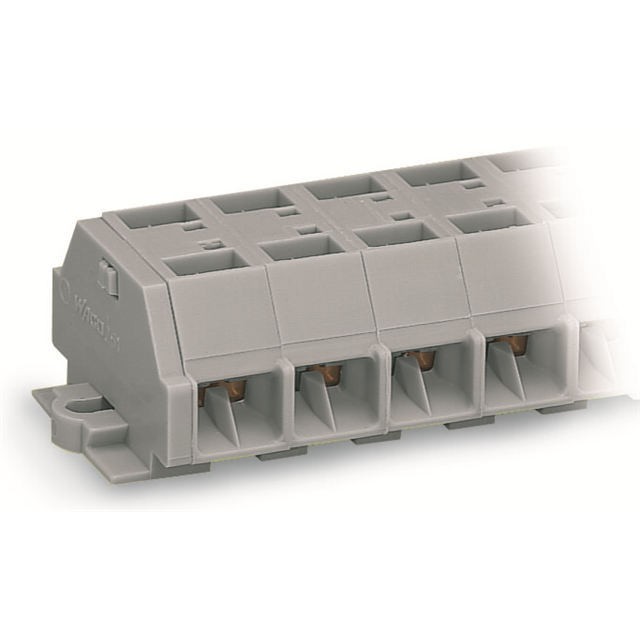

4-CONDUCTOR TERMINAL STRIP, WITH FIXING FLANGES, FOR SCREW OR SIMILAR MOUNTING TYPES, FIXING HOLE 3.2 MM DIA, WITH 209-123 MOUNTING CARRIER FOR DIN 35 RAIL, 12-POLE
261-212
ActiveWAGO Corporation
4-CONDUCTOR TERMINAL STRIP, WITH FIXING FLANGES, FOR SCREW OR SIMILAR MOUNTING TYPES, FIXING HOLE 3.2 MM DIA, WITH 209-123 MOUNTING CARRIER FOR DIN 35 RAIL, 12-POLE
Description
General part information
261-212
48 Position Terminal Block Gray Middle 134.1mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 261-212 |
|---|---|
| Current - IEC | 24 A |
| Height (Max) | 0.713 in |
| Housing Color | Gray |
| Length | 1.106 in |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Direct Mount |
| Number of Levels | 1 |
| Number of Positions | 48 |
| Stripping Length (Max) | 9 mm |
| Stripping Length (Min) | 8 mm |
| Terminal Width | 134.1 mm |
| Termination Style | Push In, Spring |
| Type | Middle |
| Voltage - IEC | 500 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
