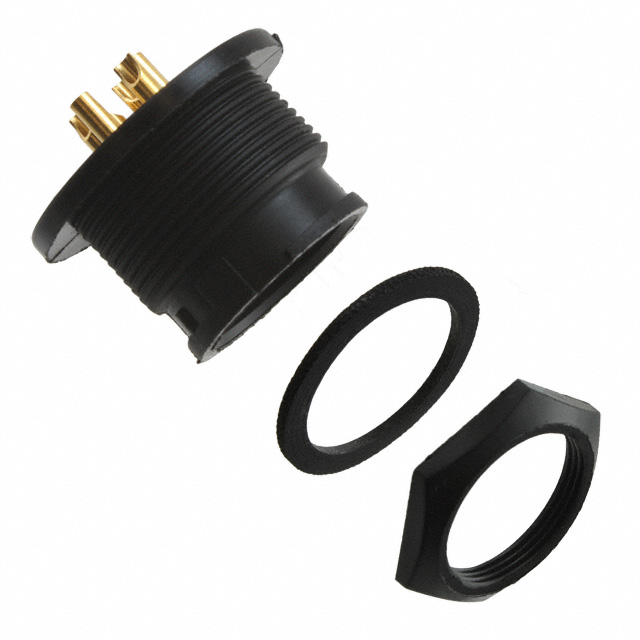

4282-6SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
4282-6SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4282-6SG-300 | 4282-6S Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
4282-6S Series
CONN RCPT FMALE 6P GOLD SLDR CUP
| Part | Ingress Protection | Mounting Feature | Orientation | Color | Contact Finish - Mating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Primary Material | Shielding | Contact Material | Connector Type | Voltage Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 4282-6SG-300 | Weathertight | Bulkhead - Front Side Nut | Keyed | Black | Gold | 5.6 A | -40 °C | 115 °C | Bayonet Lock | Plastic | Unshielded | Brass | Receptacle, Female Sockets | 600 V | 6 |
Conxall/Switchcraft 4282-6SG-3ES | Weathertight | Bulkhead - Front Side Nut | Keyed | Black | Gold | 5.6 A | -40 °C | 115 °C | Bayonet Lock | Plastic | Unshielded | Brass | Receptacle, Female Sockets | 600 V | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.73 | |
| 10 | $ 13.06 | |||
| 100 | $ 11.38 | |||
| 1000 | $ 8.91 | |||
Description
General part information
4282-6S Series
6 Position Circular Connector Receptacle, Female Sockets Solder Cup
