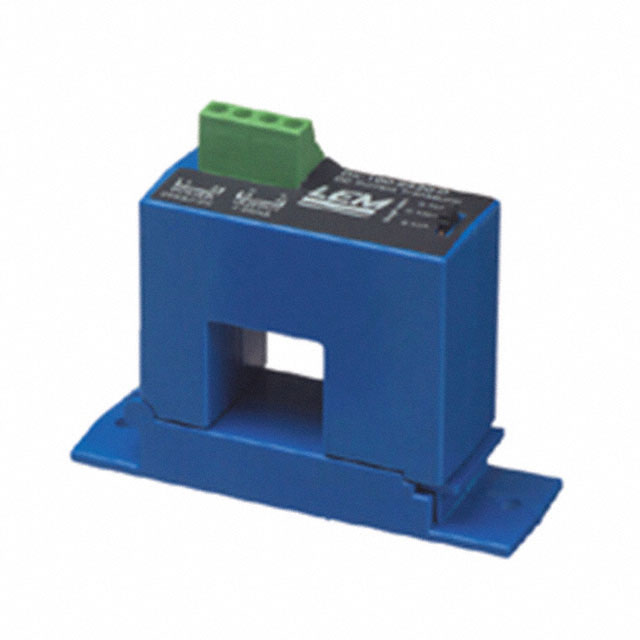

DK 20 C10 U
ActiveLEM USA Inc.
SENSOR CURRENT 20A 10V MOD
DK 20 C10 U
ActiveLEM USA Inc.
SENSOR CURRENT 20A 10V MOD
Description
General part information
DK 20 C10 U
Current Sensor Channel
Technical Specifications
Parameters and characteristics for this part
| Specification | DK 20 C10 U |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 20 A |
| Current - Supply (Max) | 100 mA |
| For Measuring | DC |
| Linearity Tolerance | 0.75 % |
| Number of Channels | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Output | Voltage |
| Polarization | Unidirectional |
| Response Time | 20 ms |
| Sensor Type | Current Switch |
| Voltage - Supply (Maximum) | 45 V |
| Voltage - Supply (Minimum) | 20 VDC |
