1555B2F22GY
ActiveHammond Manufacturing
ENCLOSURE PC GRY 2.56"L X 2.56"W
1555B2F22GY
ActiveHammond Manufacturing
ENCLOSURE PC GRY 2.56"L X 2.56"W
Description
General part information
1555B2F22GY

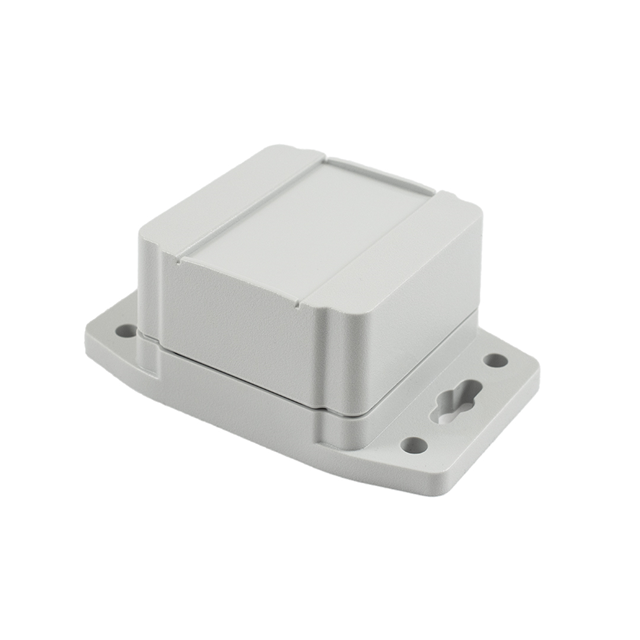

Enclosure Polycarbonate Gray Cover Included 2.560" L x 2.560" W (65.02mm x 65.02mm) X 1.670" (42.42mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1555B2F22GY |
|---|---|
| Area (L x W) | 6.54 in² |
| Color | Gray |
| Container Type | Enclosure |
| Design | Cover Included |
| Height | 1.67 in |
| Material | Polycarbonate |
| Material Flammability Rating | UL94 5VA |
| Material Flammability Rating - Code | UL94 |
| Material Flammability Rating - Level | 5 |
| Ratings | 6, NEMA 4, 12, IP68, 13, 6P, 4X |
| Size / Dimension Length | 2.56 in |
| Size / Dimension Width | 2.56 in |
