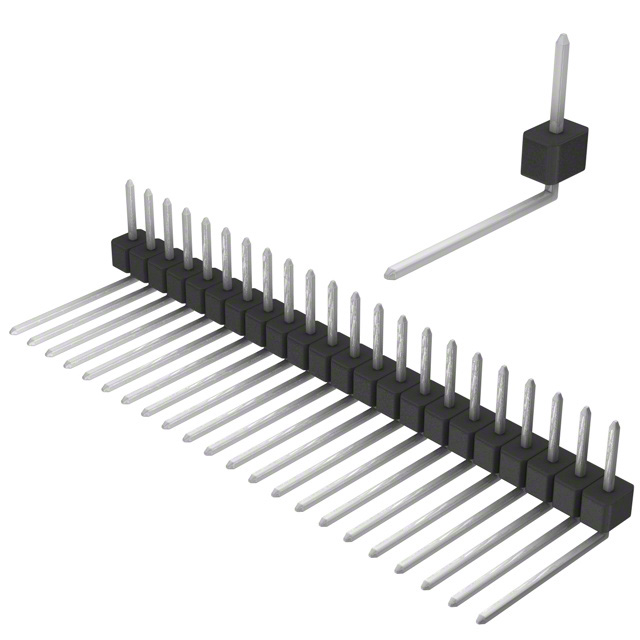

PEC22SBEN

Active

Sullins Connector Solutions

CONN HEADER R/A 22POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC22SBEN

Active

Sullins Connector Solutions

CONN HEADER R/A 22POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC22SBEN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	12.7 mm
Contact Length - Post	0.5 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC22 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Termination	Number of Rows	Contact Shape	Insulation Material	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Connector Type	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating	Insulation Color	Mounting Type	Current Rating (Amps)	Contact Material	Number of Positions	Contact Finish - Post	Contact Type	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length
Sullins Connector Solutions PEC22DBAN	2.54 µm	100 µin	Board to Board Cable	2.54 mm	0.1 in	All	Solder	2	Square	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	125 °C	-65 ░C	Unshrouded	Breakaway Header	0.24 in	6.1 mm	2.54 çm	100 çin	2.54 mm	0.1 in	UL94 V-0	0.23 in	5.84 mm	Black	Through Hole Right Angle	3 A	Phosphor Bronze	44	Tin	Male Pin
Sullins Connector Solutions PEC22SFDN	2.54 µm	100 µin	Board to Board Cable			All	Solder	1	Square	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	125 °C	-65 ░C	Unshrouded	Breakaway Header	0.1 in	2.54 mm	2.54 çm	100 çin			UL94 V-0	0.318 "		Black	Through Hole	3 A	Phosphor Bronze	22 positions	Tin	Male Pin	21.29 mm	0.838 in	8.08 mm	10.67 mm	0.42 in
Sullins Connector Solutions PEC22DBEN	2.54 µm	100 µin	Board to Board Cable	2.54 mm	0.1 in	All	Solder	2	Square	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	125 °C	-65 ░C	Unshrouded	Breakaway Header	0.24 in	6.1 mm	2.54 çm	100 çin	12.7 mm	0.5 in	UL94 V-0	0.23 in	5.84 mm	Black	Through Hole Right Angle	3 A	Phosphor Bronze	44	Tin	Male Pin
Sullins Connector Solutions PEC22SGBN	2.54 µm	100 µin	Board to Board Cable			All	Solder	1	Square	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	125 °C	-65 ░C	Unshrouded	Breakaway Header	0.14 in	3.56 mm	2.54 çm	100 çin			UL94 V-0	0.318 "		Black	Through Hole Right Angle	3 A	Phosphor Bronze	22 positions	Tin	Male Pin			8.08 mm	5.08 mm	0.2 in
Sullins Connector Solutions PEC22SBEN	2.54 µm	100 µin	Board to Board Cable			All	Solder	1	Square	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	125 °C	-65 ░C	Unshrouded	Breakaway Header	0.14 in	3.56 mm	2.54 çm	100 çin	12.7 mm	0.5 in	UL94 V-0	0.23 in	5.84 mm	Black	Through Hole Right Angle	3 A	Phosphor Bronze	22 positions	Tin	Male Pin
Sullins Connector Solutions PEC22DGBN	2.54 µm	100 µin	Board to Board Cable	2.54 mm	0.1 in	All	Solder	2	Square	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	125 °C	-65 ░C	Unshrouded	Breakaway Header	0.24 in	6.1 mm	2.54 çm	100 çin			UL94 V-0	0.318 "		Black	Through Hole Right Angle	3 A	Phosphor Bronze	44	Tin	Male Pin			8.08 mm	5.08 mm	0.2 in
Sullins Connector Solutions PEC22DACN	2.54 µm	100 µin	Board to Board Cable	2.54 mm	0.1 in	All	Solder	2	Square	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	125 °C	-65 ░C	Unshrouded	Breakaway Header	0.1 in	2.54 mm	2.54 çm	100 çin			UL94 V-0	0.23 in	5.84 mm	Black	Through Hole	3 A	Phosphor Bronze	44	Tin	Male Pin	0.65 in			8.13 mm	0.32 in	16.51 mm
Sullins Connector Solutions PEC22DBCN	2.54 µm	100 µin	Board to Board Cable	2.54 mm	0.1 in	All	Solder	2	Square	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	125 °C	-65 ░C	Unshrouded	Breakaway Header	0.24 in	6.1 mm	2.54 çm	100 çin			UL94 V-0	0.23 in	5.84 mm	Black	Through Hole Right Angle	3 A	Phosphor Bronze	44	Tin	Male Pin				7.62 mm	0.3 "
Sullins Connector Solutions PEC22SFEN	2.54 µm	100 µin	Board to Board Cable			All	Solder	1	Square	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	125 °C	-65 ░C	Unshrouded	Breakaway Header	0.1 in	2.54 mm	2.54 çm	100 çin	13.21 mm	0.52 "	UL94 V-0	0.318 "		Black	Through Hole	3 A	Phosphor Bronze	22 positions	Tin	Male Pin	23.83 mm	0.938 in	8.08 mm
Sullins Connector Solutions PEC22DAGN	2.54 µm	100 µin	Board to Board Cable	2.54 mm	0.1 in	All	Solder	2	Square	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	125 °C	-65 ░C	Unshrouded	Breakaway Header	0.1 in	2.54 mm	2.54 çm	100 çin			UL94 V-0	0.23 in	5.84 mm	Black	Through Hole	3 A	Phosphor Bronze	44	Tin	Male Pin	26.67 mm	1.05 in		18.29 mm	0.72 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.97
		10	$ 2.69
		100	$ 2.37
		500	$ 2.02
		1000	$ 1.72
		5000	$ 1.70

Description

General part information

PEC22 Series

Connector Header Through Hole, Right Angle 22 position 0.100" (2.54mm)
