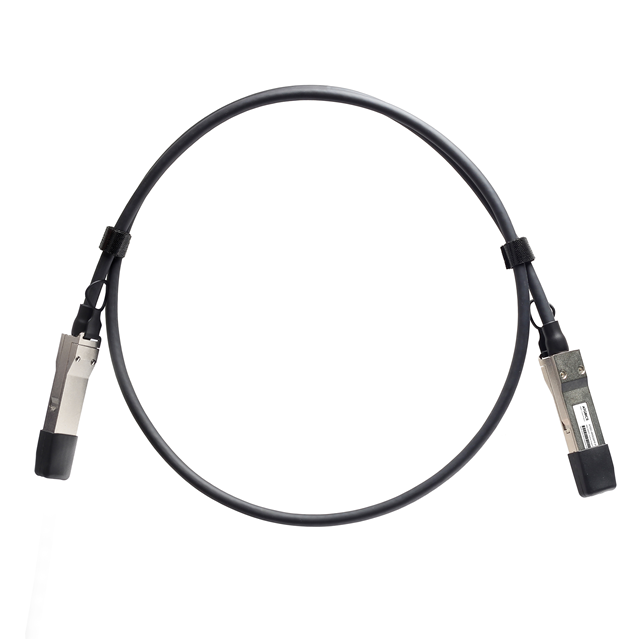

EX-QSFP-40GE-DAC-1M-C

Active

ATGBICS

COMPATIBLE DAC 40G 1M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EX-QSFP-40GE-DAC-1M-C

Active

ATGBICS

COMPATIBLE DAC 40G 1M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EX-QSFP-40GE-DAC-1M-C	EX-QSFP-40GE Series

Applications	-	General Purpose, Networking
Cable Connectors	QSFP+ to QSFP+	QSFP+ to QSFP+
Cable Type	Round	Round
Color	Black	Black
Connector Type	Plug to Plug	Plug to Plug, LC Duplex
Data Rate	-	40 Gbps
Fastening Type	Push-Pull	Push-Pull
Features	Passive	Passive
Gender	Male to Male	Male to Male
Length	-	10 m
Length	-	32.81 ft
Length [x]	1 m	1 - 500 m
Length [x]	3.28 ft	1.64 - 22.97 '
Mounting Type	-	Pluggable, QSFP+
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Shielding	Unshielded	Unshielded
Usage	Data Center Server Rack, Ethernet, Network	Data Center Server Rack, Ethernet, Network
Voltage - Supply	-	3.3 V
Wavelength	-	1310 nm
Wire Gauge	30 AWG	24 - 30 AWG
Wire Gauge	-	28 AWG, 30 AWG

EX-QSFP-40GE Series

COMPATIBLE DAC 40G 7M

Part	Shielding	Features	Length [x]	Length [x]	Wire Gauge	Fastening Type	Usage	Cable Connectors	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Gender	Connector Type	Color	Wire Gauge	Length	Length	Voltage - Supply	Wavelength	Mounting Type	Applications	Data Rate
ATGBICS EX-QSFP-40GE-DAC-7M-C	Unshielded	Passive	22.97 '	7 m	24 AWG	Push-Pull	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	70 °C	0 °C	Round	Male to Male	Plug to Plug	Black
ATGBICS EX-QSFP-40GE-DAC-5M-C	Unshielded	Passive			24 AWG	Push-Pull	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	70 °C	0 °C	Round	Male to Male	Plug to Plug	Black
ATGBICS EX-QSFP-40GE-DAC-50CM-C	Unshielded	Passive	1.64 ft	500 mm	30 AWG	Push-Pull	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	70 °C	0 °C	Round	Male to Male	Plug to Plug	Black
ATGBICS EX-QSFP-40GE-DAC-3M-C	Unshielded	Passive	9.84 ft	3 m		Push-Pull	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	70 °C	0 °C	Round	Male to Male	Plug to Plug	Black	28 AWG, 30 AWG
ATGBICS EX-QSFP-40GE-DAC-10M-C	Unshielded	Passive			24 AWG	Push-Pull	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	70 °C	0 °C	Round	Male to Male	Plug to Plug	Black		10 m	32.81 ft
ATGBICS EX-QSFP-40GE-DAC-1M-C	Unshielded	Passive	3.28 ft	1 m	30 AWG	Push-Pull	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	70 °C	0 °C	Round	Male to Male	Plug to Plug	Black
ATGBICS EX-QSFP-40GE-DAC-2M-C	Unshielded	Passive	6.56 ft	2 m	30 AWG	Push-Pull	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	70 °C	0 °C	Round	Male to Male	Plug to Plug	Black
ATGBICS EX-QSFP-40GE-LR4-C													LC Duplex					3.3 V	1310 nm	Pluggable, QSFP+	General Purpose, Networking	40 Gbps

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 54.00
		50	$ 51.30
		150	$ 48.60
		1000	$ 45.90

Description

General part information

EX-QSFP-40GE Series

Position QSFP+ to QSFP+ Plug to Plug 3.28' (1.00m) Black Unshielded
