1528484
ActivePhoenix Contact

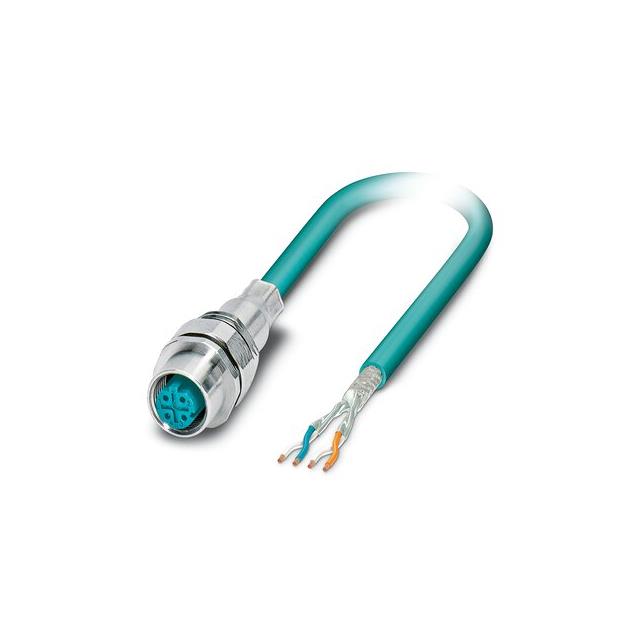

CBL CIRC 4POS FEM TO WIRE 1.64'
1528484
ActivePhoenix Contact
CBL CIRC 4POS FEM TO WIRE 1.64'
Description
General part information
1528484
Cable Assembly 1.64' (500.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1528484 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | D |
| 1st Connector Position Types | Data |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Blue |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 1.64 ft |
| Shielding | Shielded |
| Usage | Cat5, Industrial Environments |
