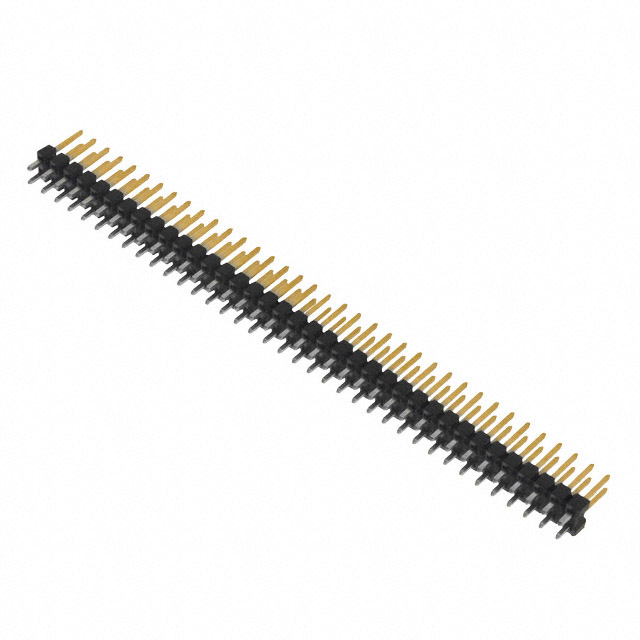

Specification	10-89-1741

Applications	Medical, Lighting, Telecommunications, Automotive, General Purpose
Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Post	74.8 µin
Contact Length - Mating	0.24 in
Contact Length - Post	0.107 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.09 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	74
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	0.437 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

001089 Series

Headers & Wire Housings CGrid RA Bkwy HPro Hdr 15SAu 10Ckt

...

Part	Fastening Type	Number of Positions	Overall Contact Length	Shrouding	Contact Length - Mating	Termination	Number of Rows	Insulation Material	Row Spacing - Mating	Contact Material	Mounting Type	Contact Type	Style	Material Flammability Rating	Contact Length - Post	Contact Shape	Contact Finish - Mating	Insulation Height	Number of Positions Loaded	Contact Finish Thickness - Mating	Pitch - Mating	Insulation Color	Connector Type	Contact Finish - Post	Applications	Contact Finish Thickness - Post
Molex 0010977245	Push-Pull	24 pos	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Tin	0.09 in	All	150 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications
Molex 0010977046	Push-Pull	4	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Gold	0.09 in	All	15 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications	74.8 µin
Molex 0010977186	Push-Pull	18	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Gold	0.09 in	All	15 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications	74.8 µin
Molex 0010977106	Push-Pull	10	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Gold	0.09 in	All	15 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications	74.8 µin
Molex 0010977125	Push-Pull	12	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Tin	0.09 in	All	150 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications
Molex 0010977145	Push-Pull	14	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Tin	0.09 in	All	150 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications
Molex 0010977345	Push-Pull	34	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Tin	0.09 in	All	150 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications
Molex 0010977806	Push-Pull	80	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Gold	0.09 in	All	15 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications	74.8 µin
Molex 0010977166	Push-Pull	16	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Gold	0.09 in	All	15 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications	74.8 µin
Molex 0010977366	Push-Pull	36	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Gold	0.09 in	All	15 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications	74.8 µin
