Specification	SLM-137-01-S-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Post	0.115 in
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.18 in
Mounting Type	Through Hole
Number of Positions	37 pos
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.05 in
Style	Board
Termination	Solder

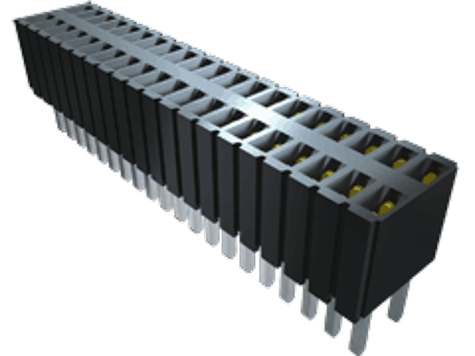

SLM Series

Part	Number of Positions Loaded	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Fastening Type	Mounting Type	Number of Rows	Connector Type	Contact Type	Contact Finish Thickness - Mating	Termination	Pitch - Mating	Style	Contact Finish - Post	Number of Positions	Contact Length - Post	Insulation Height	Insulation Color	Contact Material	Insulation Material	Contact Shape	Row Spacing - Mating
Samtec Inc. SLM-150-01-S-S	All	125 °C	-55 °C	Gold	Push-Pull	Through Hole	1	Receptacle	Forked	30 µin	Solder	0.05 in	Board	Tin	50	0.115 in	0.18 in	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Rectangular
Samtec Inc. SLM-150-01-S-D	All	125 °C	-55 °C	Gold	Push-Pull	Through Hole	2	Receptacle	Forked	30 µin	Solder	0.05 in	Board	Tin	100	0.115 in	0.18 in	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Rectangular	0.1 in
