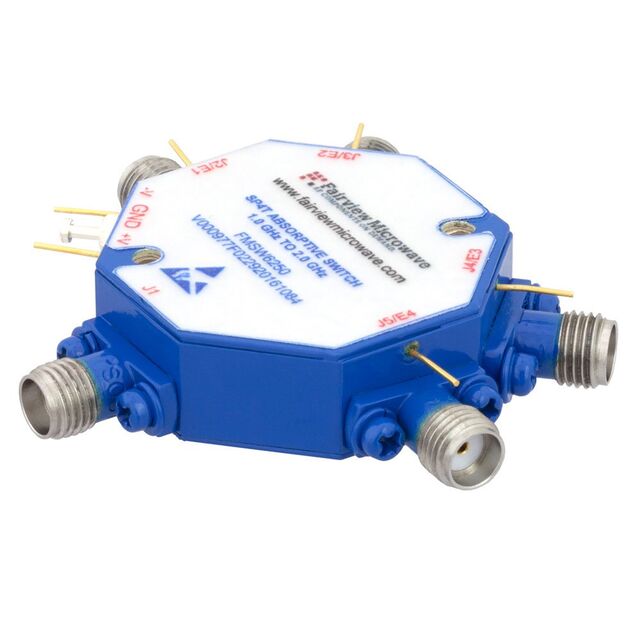

FMSW6250
ActiveFairview Microwave
PIN DIODE SWITCH SMA SP4T 2GHZ
FMSW6250
ActiveFairview Microwave
PIN DIODE SWITCH SMA SP4T 2GHZ
Description
General part information
FMSW6250
RF Switch IC General Purpose SP4T 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW6250 |
|---|---|
| Circuit | SP4T |
| Frequency Range (Max) | 2 GHz |
| Frequency Range (Min) | 1 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 1.2 dB |
| Isolation (Min) | 60 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | General Purpose |
| Test Frequency | 2 GHz |
| Topology | Absorptive |
| Voltage - Supply | 5 VDC, -15 V |
| Voltage - Supply | 5V, -15V |
