S24493DS36RTN
ObsoleteTE Connectivity Raychem Cable Protection

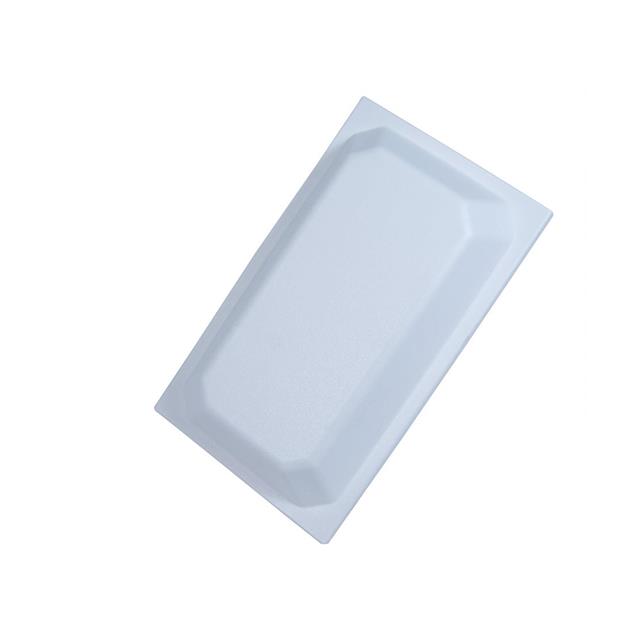

RF ANT 2.4/5.5GHZ PANEL CAB 36"
Deep-Dive with AI
Search across all available documentation for this part.
S24493DS36RTN
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 2.4/5.5GHZ PANEL CAB 36"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S24493DS36RTN |
|---|---|
| Antenna Type | Panel |
| Applications | Wi-Fi |
| Features | 914 mm |
| Features | Cable |
| Frequency (Center/Band) | 5.5 GHz, 2.4 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 2.5 GHz, 5.9 GHz |
| Frequency Range [Min] | 2.4 GHz, 4.9 GHz |
| Gain | 3 dBi, 4 dBi |
| Height (Max) [Max] | 0.89 in |
| Height (Max) [Max] | 22.6 mm |
| Mounting Type | Bracket Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 2 W |
| RF Family/Standard | WiFi |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
S24493 Series
RF ANTENNA Wi-Fi Panel RP-TNC Male Bracket Mount
Documents
Technical documentation and resources
No documents available
