MCP1826T-ADJE/DC

Active

Microchip Technology

LDO VOLTAGE REGULATOR, ADJUSTABLE, 2.3 V TO 6 V, 1 OUTPUT, 250MV @ 1A, 800 MV TO 5 V, 1 A, 5 PINS, S… MORE

Find alt

Alpha

MCP1826T-ADJE/DC

Active

Microchip Technology

LDO VOLTAGE REGULATOR, ADJUSTABLE, 2.3 V TO 6 V, 1 OUTPUT, 250MV @ 1A, 800 MV TO 5 V, 1 A, 5 PINS, S… MORE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MCP1826 Series

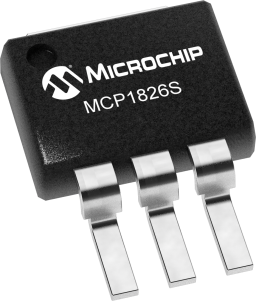

The MCP1826S is a 1A, ceramic output cap stable, low output voltage, Low Dropout Regulator (LDO). It is part of the family of LDOs that includes 500 mA MCP1825S and 1.5A MCP1827S. The MCP1826S comes in thermally enhanced DDPAK-3 and TO-220-3 packages as well as space-efficient SOT223-3 package.

Technical Specifications

Parameters and characteristics for this part

Specification	MCP1826T-ADJE/DC

Control Features	Power Good, Enable
Current - Output	1 A
Current - Quiescent (Iq)	220 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	SOT-223-6
Package Name	SOT-223-5
Protection Features	Under Voltage Lockout (UVLO), Over Temperature, Short Circuit
PSRR	60 dB
Voltage - Input (Max)	6 V
Voltage - Output (Max)	5 V
Voltage - Output (Min/Fixed)	0.8 V
Voltage Dropout (Max)	0.4 V

MCP1826 Series

1.0A LDO

Part	Operating Temperature (Max)	Operating Temperature (Min)	Output Type	Number of Regulators	Output Configuration	Voltage - Output (Min/Fixed)	Protection Features	Current - Quiescent (Iq)	Package Name	Mounting Type	Voltage Dropout (Max)	Voltage - Input (Max)	Current - Output	Package / Case	PSRR	Package Leads	Control Features	Voltage - Output (Max)
Microchip Technology MCP1826S-2502E/EB	125 °C	-40 °C	Fixed	1	Positive	2.5 V	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	220 µA	DDPAK-3	Surface Mount	0.4 V	6 V	1 A	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	60 dB
Microchip Technology MCP1826-0802E/ET	125 °C	-40 °C	Fixed	1	Positive	0.8 V	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	220 µA	D2PAK DDPAK-5	Surface Mount	0.4 V	6 V	1 A		60 dB	5 Leads	Enable Power Good
Microchip Technology MCP1826-ADJE/ET	125 °C	-40 °C	Adjustable	1	Positive	0.8 V	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	220 µA	D2PAK DDPAK-5	Surface Mount	0.4 V	6 V	1 A		60 dB	5 Leads	Enable Power Good	5 V
Microchip Technology MCP1826S-5002E/DB	125 °C	-40 °C	Fixed	1	Positive	5 V	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	220 µA	SOT-223-3	Surface Mount	0.4 V	6 V	1 A	TO-261-4 TO-261AA	60 dB
Microchip Technology MCP1826-0802E/AT	125 °C	-40 °C	Fixed	1	Positive	0.8 V	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	220 µA	TO-220-5	Through Hole	0.4 V	6 V	1 A	TO-220-5	60 dB		Enable Power Good
Microchip Technology MCP1826ST-1202E/EB	125 °C	-40 °C	Fixed	1	Positive	1.2 V	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	220 µA	DDPAK-3	Surface Mount	0.4 V	6 V	1 A	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	60 dB
Microchip Technology MCP1826-2502E/ET	125 °C	-40 °C	Fixed	1	Positive	2.5 V	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	220 µA	D2PAK DDPAK-5	Surface Mount	0.4 V	6 V	1 A		60 dB	5 Leads	Enable Power Good
Microchip Technology MCP1826T-5002E/DC	125 °C	-40 °C	Fixed	1	Positive	5 V	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	220 µA	SOT-223-5	Surface Mount	0.4 V	6 V	1 A	SOT-223-6	60 dB		Enable Power Good
Microchip Technology MCP1826-2502E/AT	125 °C	-40 °C	Fixed	1	Positive	2.5 V	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	220 µA	TO-220-5	Through Hole	0.4 V	6 V	1 A	TO-220-5	60 dB		Enable Power Good
Microchip Technology MCP1826S-1202E/AB	125 °C	-40 °C	Fixed	1	Positive	1.2 V	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	220 µA	TO-220-3	Through Hole	0.4 V	6 V	1 A	TO-220-3	60 dB
