776493-2
ActiveTE Connectivity AMP Connectors

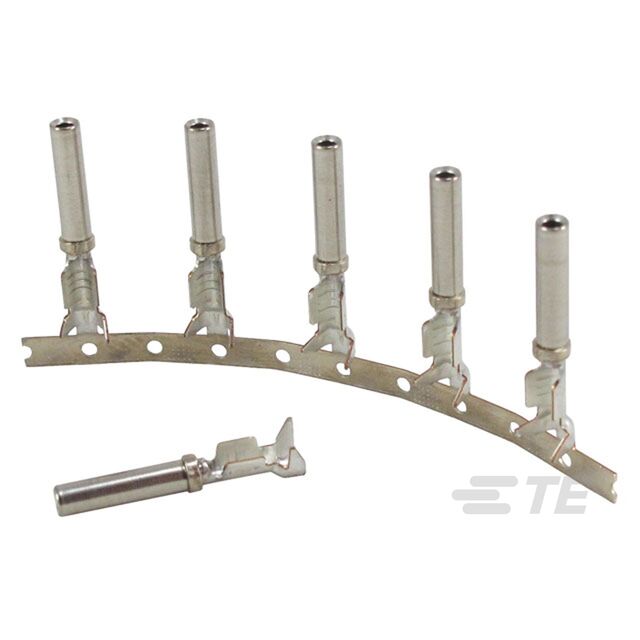

CONN SOCKET 18-20AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
776493-2
ActiveTE Connectivity AMP Connectors
CONN SOCKET 18-20AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 776493-2 | 776493 Series |
|---|---|---|
| Contact Finish | Tin | Gold, Tin |
| Contact Finish Thickness | 2.54 µm | 0.76 - 2.54 Ám |
| Contact Finish Thickness | 100 µin | 30 - 100 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
776493 Series
CONN SOCKET 18-20AWG CRIMP GOLD
| Part | Pin or Socket | Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 776493-1 | Socket | Stamped | Gold | 0.76 Ám | 30 Áin | 17.5 AWG | 20 AWG | Crimp |
TE Connectivity AMP Connectors 776493-2 | Socket | Stamped | Tin | 2.54 µm | 100 µin | 17.5 AWG | 20 AWG | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.72 | |
| 10 | $ 0.69 | |||
| 25 | $ 0.69 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.44 | |||
| Tape & Reel (TR) | 4000 | $ 0.41 | ||
| 8000 | $ 0.38 | |||
| 12000 | $ 0.36 | |||
Description
General part information
776493 Series
Socket Contact Tin 18-20 AWG Crimp Stamped
