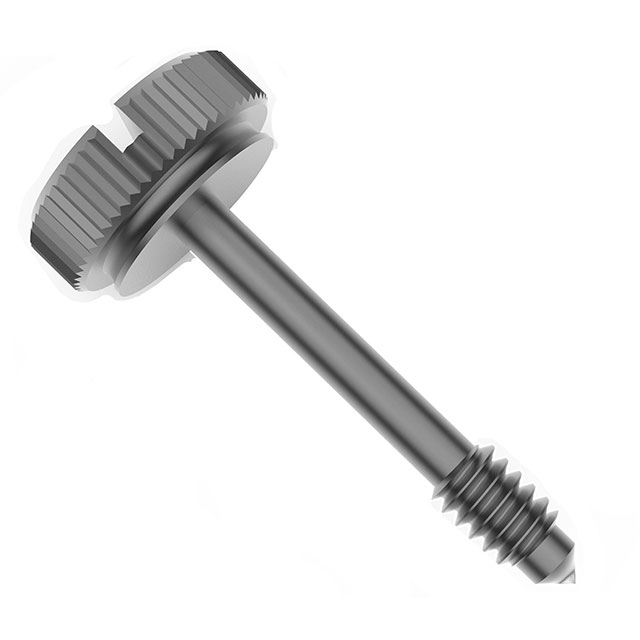

0800-SS-20
ActiveRAF Electronic Hardware
1/8HD X 5/16 X 2-56 THD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0800-SS-20 |
|---|---|
| Drive Type | Slotted |
| Head Diameter [diameter] | 3.18 mm |
| Head Diameter [diameter] | 0.125 " |
| Head Diameter [diameter] | 0.125 " |
| Head Height | 0.083 " |
| Head Height | 2.11 mm |
| Length - Below Head [custom] | 7.94 mm |
| Length - Below Head [custom] | 0.313 in |
| Length - Overall [x] | 0.396 in |
| Length - Overall [x] | 10.05 mm |
| Material | Stainless Steel |
| Plating | Passivated |
| Screw Head Type | Pan Head |
| Thread Size | #2-56 |
| Type | Panel Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 102 | $ 3.55 | |
Description
General part information
0800-SS-20
#2-56 Pan Head Panel Screw Slotted Drive Stainless Steel
