10168-900APL

Active

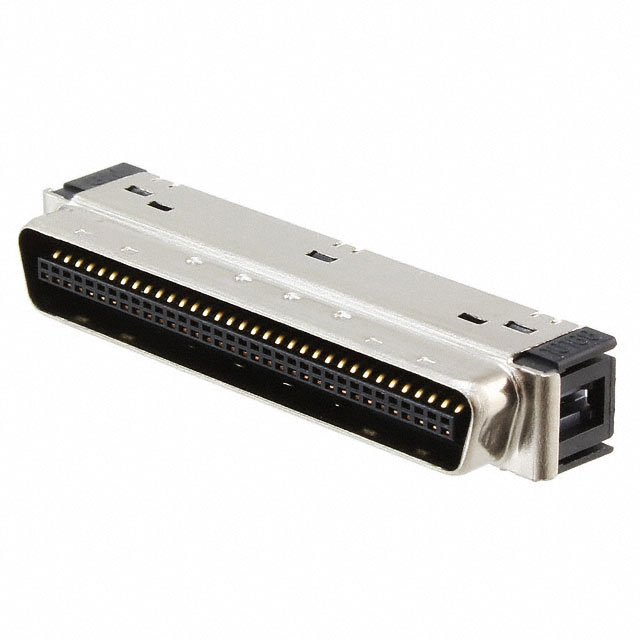

CONN PLUG 68POS EDGE MNT SOLDER

Search across all available documentation for this part.

Active

CONN PLUG 68POS EDGE MNT SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10168-900APL	10168 Series

	-	-
Connector Style	Center Strip Contacts	Center Strip Contacts
Connector Type	Plug	Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	8 çin	8 - 30 Áin
Contact Finish Thickness	0.203 çm	0.203 - 0.76 Ám
Features	Shielded	Shielded
Mounting Type	Board Edge, Straddle Mount	Free Hanging (In-Line), Board Edge, Straddle Mount
Number of Positions	68	68
Number of Rows	2	2
Termination	Solder	IDC, Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

D SUB CONNECTOR, 68 CONTACTS, PLUG, IDC / IDT, MDR 101 SERIES, STEEL BODY

Part	Connector Style	Number of Rows	Contact Finish	Features	Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Mounting Type
3M 10168-6010EC	Center Strip Contacts	2	Gold	Shielded	IDC	0.76 Ám	30 Áin	Plug	68	Free Hanging (In-Line)
3M 10168-6010EC
3M 10168-900AJL	Center Strip Contacts	2	Gold	Shielded	Solder	0.203 çm	8 çin	Plug	68	Board Edge, Straddle Mount
3M 10168-8100EE
3M 10168-900APL	Center Strip Contacts	2	Gold	Shielded	Solder	0.203 çm	8 çin	Plug	68	Board Edge, Straddle Mount
3M 10168-8100EE	Center Strip Contacts	2	Gold		IDC	0.76 Ám	30 Áin	Plug	68	Free Hanging (In-Line)

General part information

68 Position Plug Connector Board Edge, Straddle Mount Solder
