9LG0824S4D001
ActiveSanyo Denki America Inc.
80X25MM 24V, HIGH PERF LONG LIFE
9LG0824S4D001
ActiveSanyo Denki America Inc.
80X25MM 24V, HIGH PERF LONG LIFE
Description
General part information
9LG0824S4D001

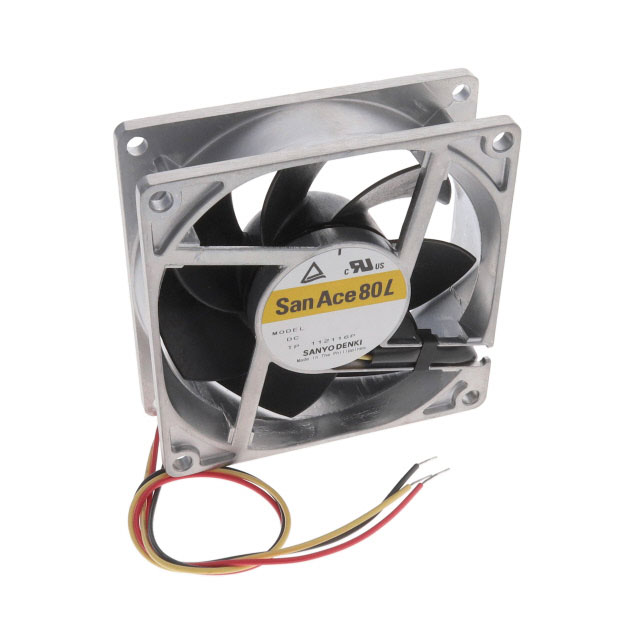

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 3 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | 9LG0824S4D001 |
|---|---|
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Size / Dimension Height | 80 mm |
| Size / Dimension Length | 80 mm |
| Size / Dimension Shape | Square |
| Termination | 3 Wire Leads |
| Termination Leads Count | 3 |
| Termination Type | Wire Leads |
| Voltage - Rated | 24 VAC |
| Width | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
