HSP-5
ActiveSensata-Crydom
THERMALLY CONDUCTIVE GAP THERMAL PADS
HSP-5
ActiveSensata-Crydom
THERMALLY CONDUCTIVE GAP THERMAL PADS
Description
General part information
HSP-5

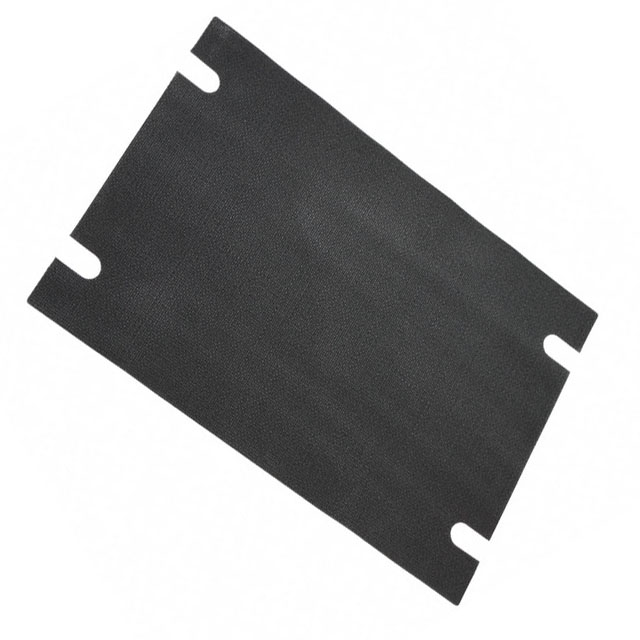

Thermal Pad Black 104.39mm x 73.66mm Rectangular Adhesive - One Side
Technical Specifications
Parameters and characteristics for this part
| Specification | HSP-5 |
|---|---|
| Adhesive | Adhesive - One Side |
| Color | Black |
| Outline Length | 104.39 mm |
| Outline Width | 73.66 mm |
| Shape | Rectangular |
| Thermal Conductivity | 2 W/m-K |
| Thickness | 0.005 in |
| Type | Pad, Sheet |
| Usage | Three Phase SSRs |
