000-10400

Active

AMPHENOL RF

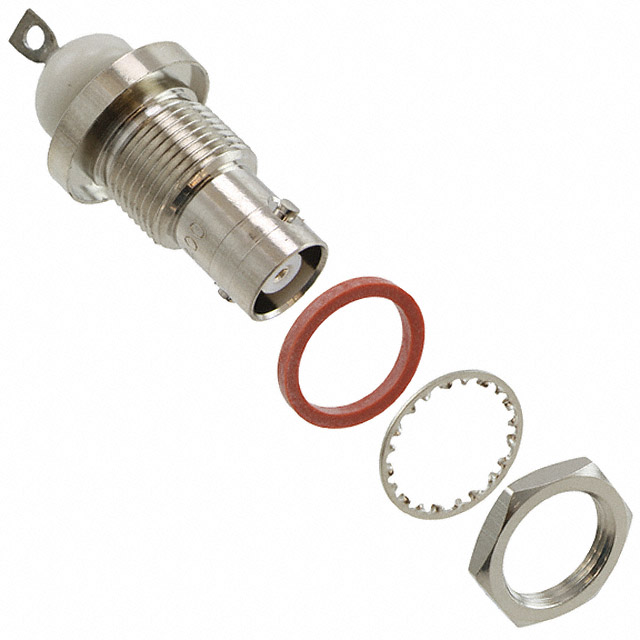

CONN MHV RCPT STR SOLDER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN MHV RCPT STR SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-10400	000-10 Series

Body Finish	Nickel	Nickel, Silver
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Silver	Silver
Connector Style	MHV	MHV, SMA
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket
Contact Termination	Solder Eyelet	Solder Eyelet
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Extended Insulation	Extended Insulation
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Panel Mount, Bulkhead - Front Side Nut
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder
Voltage Rating	5000 V	5000 V

CONN MHV RCPT STR SOLDER

Part	Mounting Feature	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Connector Type	Ingress Protection	Fastening Type	Mating Cycles	Voltage Rating	Impedance	Connector Style	Housing Color	Contact Termination	Number of Ports	Dielectric Material	Center Contact Plating	Body Material	Features	Center Contact Material	Body Finish	Mounting Type
AMPHENOL RF 000-10400	Bulkhead - Front Side Nut	Solder	-65 ░C	165 °C	1 Connector, 1 Lockwasher, 1 Nut	Female Socket, Receptacle	IP67 - Dust Tight, Waterproof	Bayonet Lock	500	5000 V	Non-Constant	MHV	Silver	Solder Eyelet	1	Polytetrafluoroethylene (PTFE)	Silver	Brass	Extended Insulation	Beryllium Copper	Nickel
AMPHENOL RF 000-1075												SMA						Brass			Silver	Panel Mount, Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MHV Connector Receptacle, Female Socket Non-Constant Panel Mount Solder Eyelet
