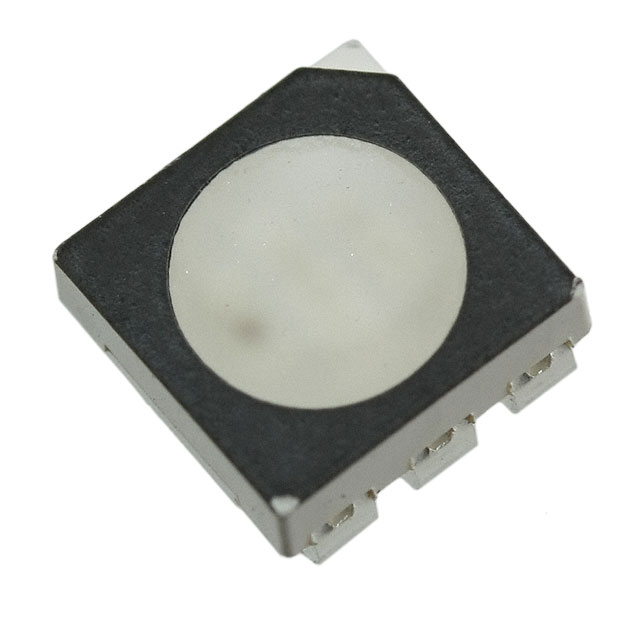

CLV6A-FKB-CK1P1G1BB7R3R3

Obsolete

Cree LED

LED RGB CLEAR 6PLCC SMD

Search across all available documentation for this part.

Obsolete

Cree LED

LED RGB CLEAR 6PLCC SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLV6A-FKB-CK1P1G1BB7R3R3	CLV6A Series

Color	Red, Green, Blue	Red, Green, Blue
Configuration	Independent	Independent
Current - Test [custom]	20 mA	20 mA
Current - Test [custom]	20 mA	20 mA
Current - Test [custom]	20 mA	20 mA
Height (Max) [Max] [z]	2.1 mm	2.1 mm
Lens Color	Colorless	White, Colorless
Lens Size [diameter]	4.2 mm	4.2 mm
Lens Transparency	Clear	Diffused, Clear
Millicandela Rating [custom]	420 mcd	420 mcd
Millicandela Rating [custom]	840 mcd	840 mcd
Millicandela Rating [custom]	1680 mcd	1680 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	6-SMD, J-Lead	6-SMD, J-Lead
Size / Dimension [x]	5.5 mm	5.5 mm
Size / Dimension [y]	5.5 mm	5.5 mm
Supplier Device Package	6-PLCC	6-PLCC
Voltage - Forward (Vf) (Typ) [custom]	3.2 V	3.2 V
Voltage - Forward (Vf) (Typ) [custom]	2 V	2 V
Voltage - Forward (Vf) (Typ) [custom]	3.2 V	3.2 V
Wavelength - Dominant	530 nm, 621.5 nm, 470 nm	470 - 622 nm

LED RGB DIFFUSED 6PLCC SMD

Part	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Lens Size [diameter]	Color	Height (Max) [Max] [z]	Configuration	Wavelength - Dominant	Lens Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Lens Transparency
Cree LED CLV6A-FKB-CKNPRGJBB7A363	Surface Mount	6-SMD, J-Lead	5.5 mm	5.5 mm	6-PLCC	4.2 mm	Blue, Green, Red	2.1 mm	Independent	470 nm, 530 nm, 622 nm	White	420 mcd	840 mcd	1680 mcd	3.2 V	2 V	3.2 V	20 mA	20 mA	20 mA	Diffused
Cree LED CLV6A-FKB-CM1Q1H1BB7R3R3	Surface Mount	6-SMD, J-Lead	5.5 mm	5.5 mm	6-PLCC	4.2 mm	Blue, Green, Red	2.1 mm	Independent	470 nm, 530 nm, 622 nm	White				3.2 V	2 V	3.2 V	20 mA	20 mA	20 mA	Diffused
Cree LED CLV6A-FKB-CK1P1G1BB7R3R3	Surface Mount	6-SMD, J-Lead	5.5 mm	5.5 mm	6-PLCC	4.2 mm	Blue, Green, Red	2.1 mm	Independent	470 nm, 530 nm, 621.5 nm	Colorless	420 mcd	840 mcd	1680 mcd	3.2 V	2 V	3.2 V	20 mA	20 mA	20 mA	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red, Green, Blue (RGB) 621.5nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.2V Green, 3.2V Blue 6-SMD, J-Lead
