09TR11KA503DPR
ActiveCTS Electrocomponents

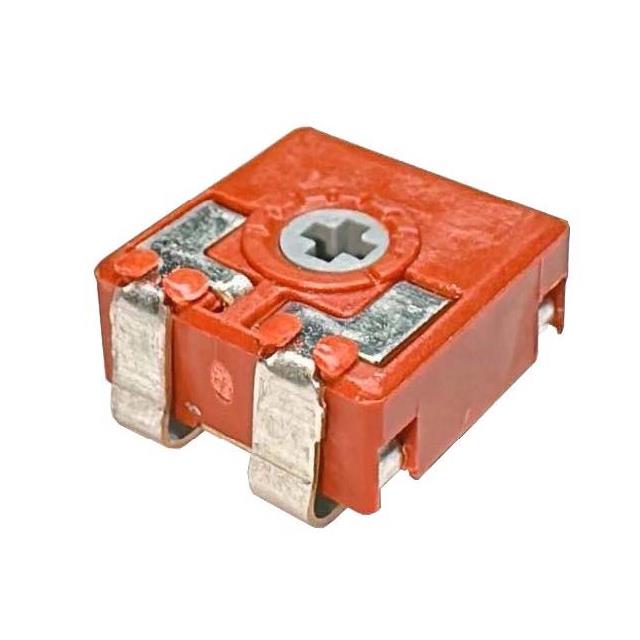

TRIMMER 50K OHM 0.15W J LEAD TOP
09TR11KA503DPR
ActiveCTS Electrocomponents
TRIMMER 50K OHM 0.15W J LEAD TOP
Description
General part information
09TR11KA503DPR
50 kOhms 0.15W J Lead Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | 09TR11KA503DPR |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 turns |
| Power (Watts) | 150 mW |
| Resistance | 50 kOhm |
| Resistive Material | Carbon |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.386 in |
| Temperature Coefficient (Highest) | 200 ppm/°C |
| Temperature Coefficient (Lowest) | -500 ppm/°C |
| Temperature Coefficient (Negative) | -500 ppm/°C |
| Temperature Coefficient (Positive) | 200 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 30 % |
