Description
General part information

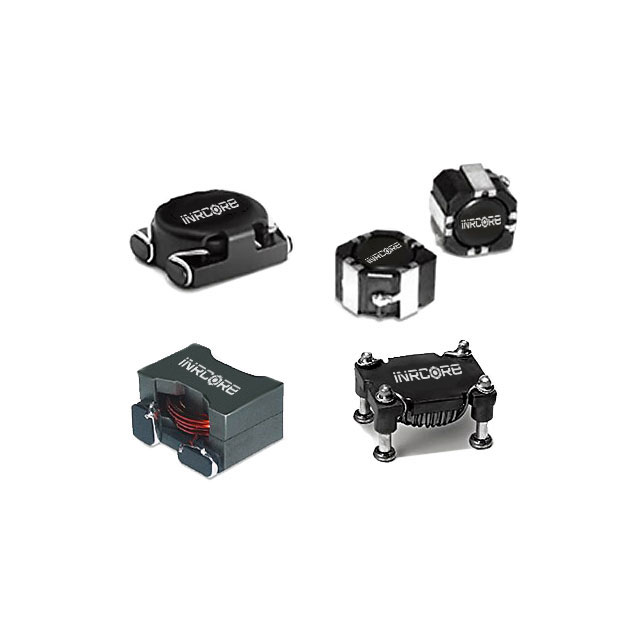

PL8160
2.8 µH Unshielded Toroidal Inductor 13.9 A 3.6mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PL8160 |
|---|---|
| Current Rating | 13.9 A |
| DC Resistance (DCR) (Max) | 3.6 mOhm |
| Height - Seated (Max) | 0.52 in |
| Inductance | 2.8 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.9 in |
| Size / Dimension Width | 0.69 in |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
