657-15ABPN
ObsoleteWakefield Thermal Solutions

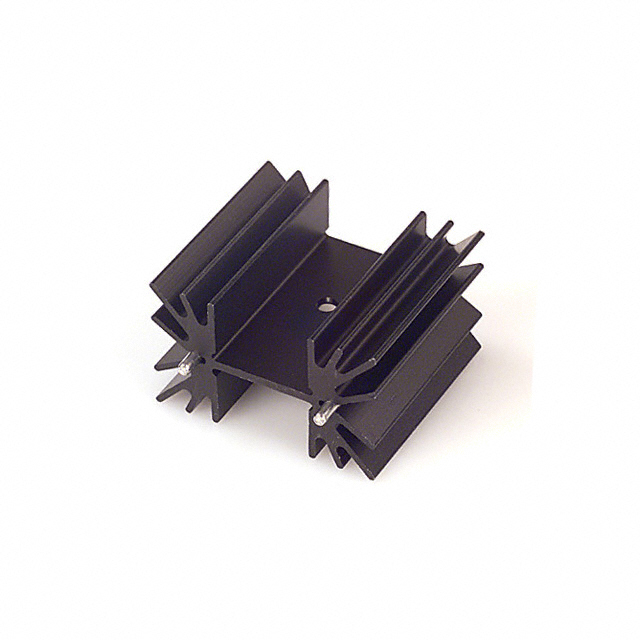

HEATSINK TO-220 W/PINS BLK 1.5"
657-15ABPN
ObsoleteWakefield Thermal Solutions
HEATSINK TO-220 W/PINS BLK 1.5"
Description
General part information
657-15ABPN
Heat Sink TO-218, TO-220, TO-247 Aluminum 6.0W @ 38°C Board Level, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | 657-15ABPN |
|---|---|
| Attachment Method | PC Pin, Bolt On |
| Fin Height | 1.5 in |
| Length | 25.4 mm |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220, TO-247, TO-218 |
| Power Dissipation | 6 W |
| Shape | Fins, Rectangular |
| Thermal Resistance | 6.3 °C/W, 3.3 °C/W |
| Type | Vertical, Board Level |
| Width | 1.65 in |
