1-2301462-5
ActiveTE Connectivity AMP Connectors

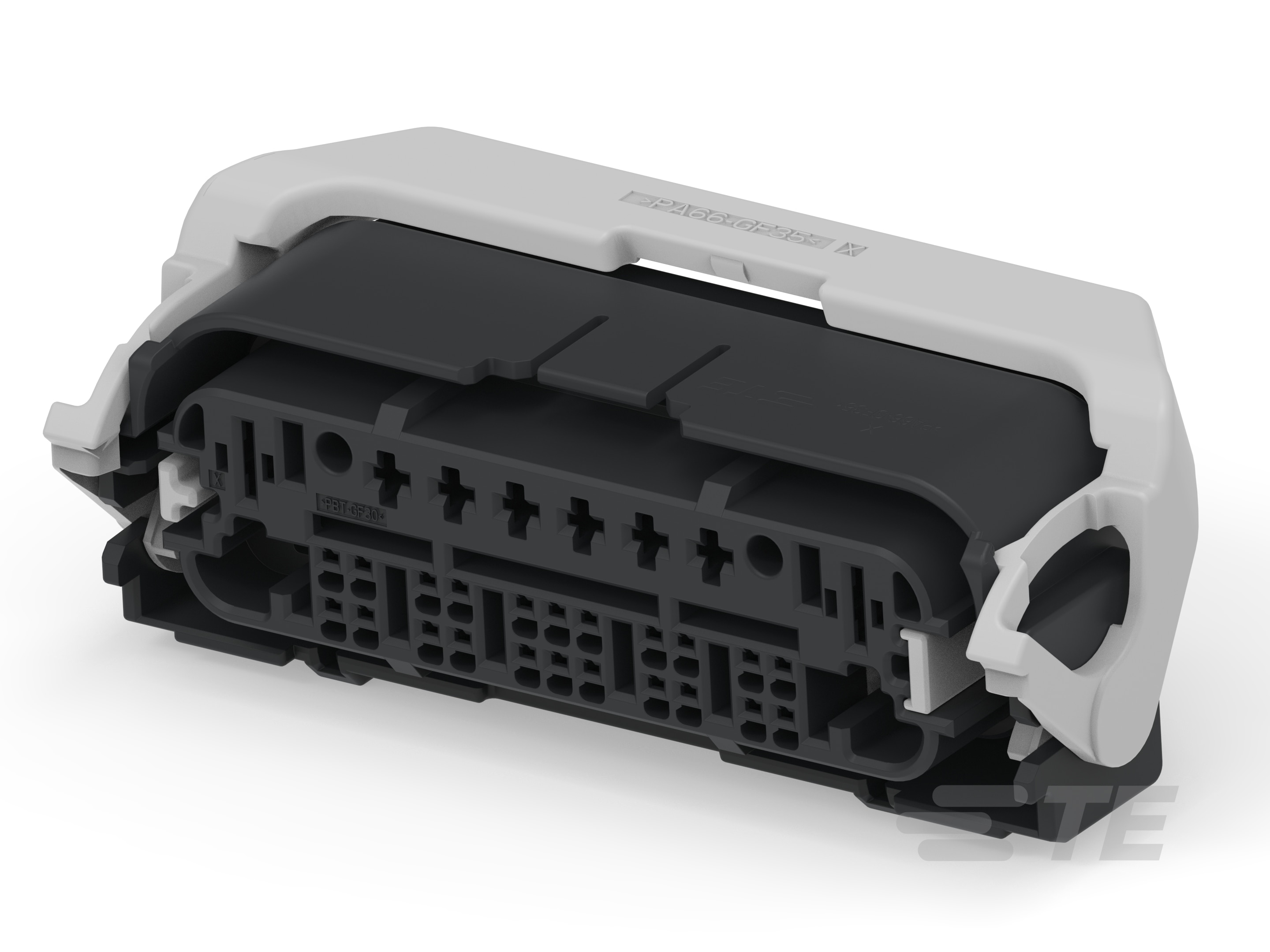

30POS,HYBRID,REC HSG ASSY,SLD,COD A
1-2301462-5
ActiveTE Connectivity AMP Connectors
30POS,HYBRID,REC HSG ASSY,SLD,COD A
Description
General part information
1-2301462-5
30 Position Housing, Housing for Female Terminals, Wire-to-Wire, 3 mm / 6 mm [.12 in / .24 in] Centerline, Sealable, Black, Wire & Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2301462-5 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Lever Lock |
| Features | Sealed |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 30 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Row Spacing | 0.165 in |
