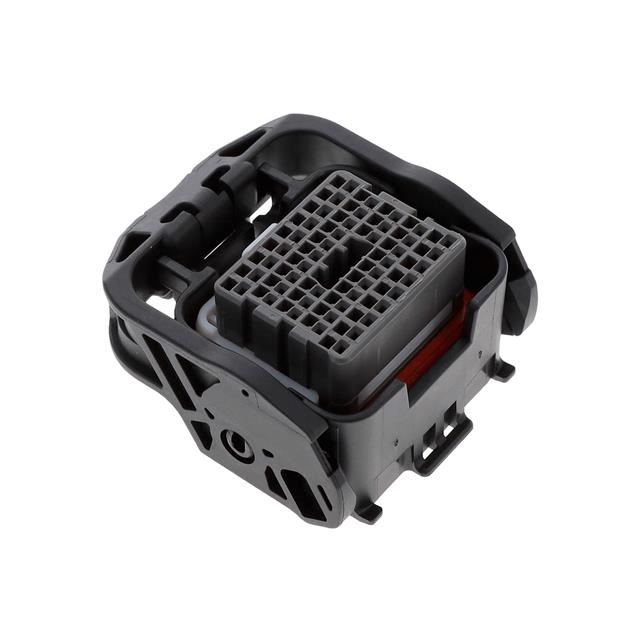

1717138-5
ActiveTE Connectivity AMP Connectors
025/040 SEALED 44POS PLUG ASSY
1717138-5
ActiveTE Connectivity AMP Connectors
025/040 SEALED 44POS PLUG ASSY
Description
General part information
0.64/025 Connector System Series
44 Position Housing, Housing for Female Terminals, Wire-to-Board, 2.5 mm / 3 mm [.09 in / .12 in] Centerline, Sealable, 0.64/025 Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1717138-5 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Lever Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 44 |
| Number of Rows | 5 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
