PS03-S160MP-A4W
ActiveSame Sky (Formerly CUI Devices)
SENSOR 2320PSIS .15V
PS03-S160MP-A4W
ActiveSame Sky (Formerly CUI Devices)
SENSOR 2320PSIS .15V
Description
General part information
PS03-S160MP-A4W

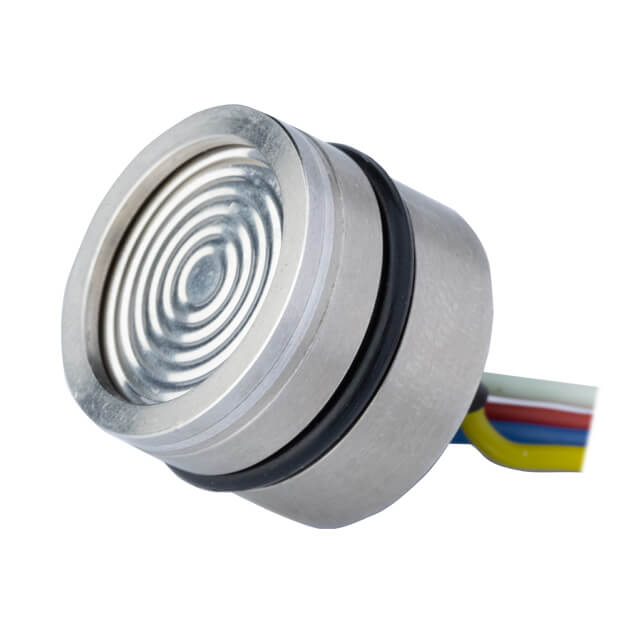

Pressure Sensor 2320.6PSI (16000kPa) Sealed Gauge 60 mV ~ 150 mV Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PS03-S160MP-A4W |
|---|---|
| Features | Temperature Compensated |
| Maximum Pressure | 4641.21 PSI |
| Operating Pressure | 2320.6 PSI |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Wheatstone Bridge |
| Output Voltage (Max) | 150 mV |
| Output Voltage (Min) | 60 mV |
| Package / Case | Module |
| Port Style | No Port |
| Pressure Type | Sealed Gauge |
| Termination Style | Wire Leads |
