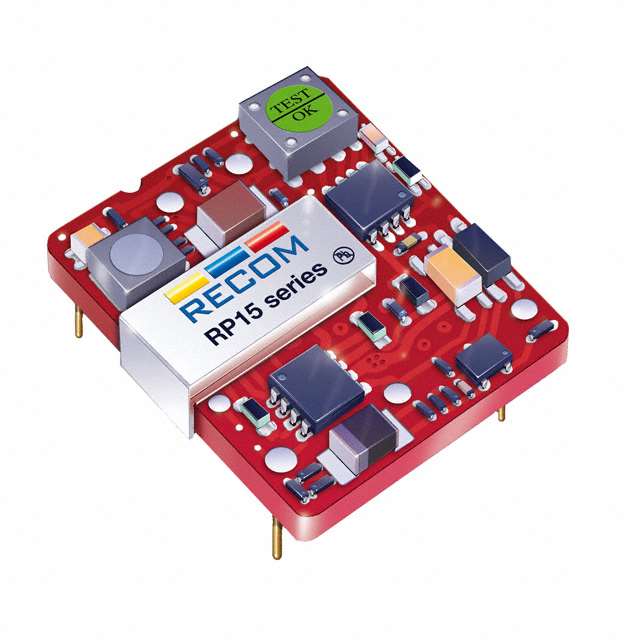

RP15-483.3SOFW/N-R
ObsoleteRecom Power
DC DC CONVERTER 3.3V 15W
RP15-483.3SOFW/N-R
ObsoleteRecom Power
DC DC CONVERTER 3.3V 15W
Description
General part information
RP15-483.3SOFW/N-R
Isolated Module DC DC Converter 1 Output 3.3V 4A 18V - 75V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RP15-483.3SOFW/N-R |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Low |
| Current - Output (Max) | 4 A |
| Efficiency | 85 % |
| Features | SCP, OCP, Remote On/Off, OVP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.33 in |
| Size / Dimension Length | 1.1 in |
| Size / Dimension Width | 0.94 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 75 V |
| Voltage - Input (Min) | 18 V |
| Voltage - Isolation | 2.25 kV |
| Voltage - Output 1 | 3.3 V |
