Description
General part information

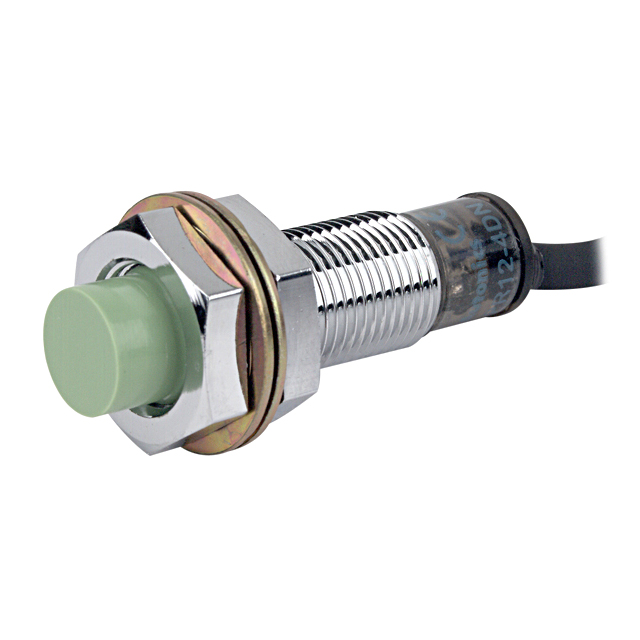

PRT12-4DO
SENSOR, INDUCTIVE PROX, M12 ROUND, NON SHIELDED, 4MM SENSING, NO, 2 WIRE, 10-30 VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT12-4DO |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NO, 2-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Response Frequency | 500 Hz |
| Sensing Distance | 0.157 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
