MAL215937101E3
ActiveVishay Dale

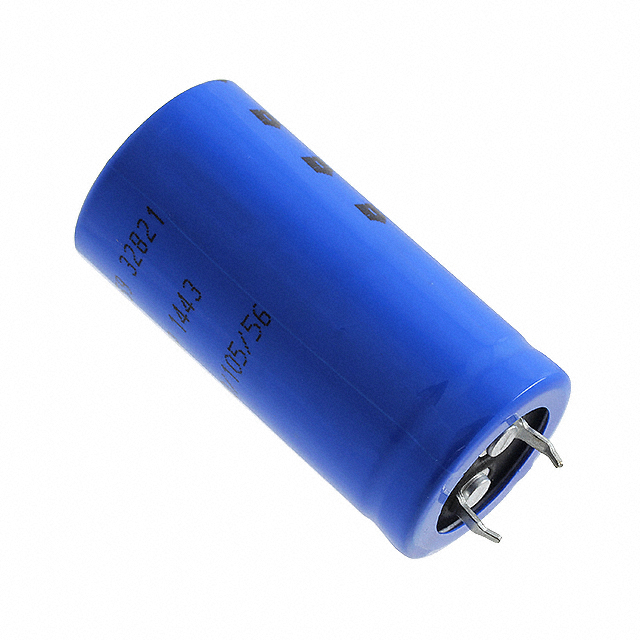

ELECTROLYTIC CAPACITOR, SNAP-IN, 159 PUL-SI SERIES, 100 F, 20%, 450 V, 22 MM, 0.87 OHM ROHS COMPLIANT: YES
MAL215937101E3
ActiveVishay Dale
ELECTROLYTIC CAPACITOR, SNAP-IN, 159 PUL-SI SERIES, 100 F, 20%, 450 V, 22 MM, 0.87 OHM ROHS COMPLIANT: YES
Description
General part information
MAL215937101E3
100 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1.8Ohm @ 100Hz 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL215937101E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | 1.8 Ohm |
| Height - Seated (Max) | 1.654 in |
| Impedance | 1.05 Ohm |
| Lead Spacing | 0.394 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 740 mA |
| Size / Dimension Diameter | 0.866 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
