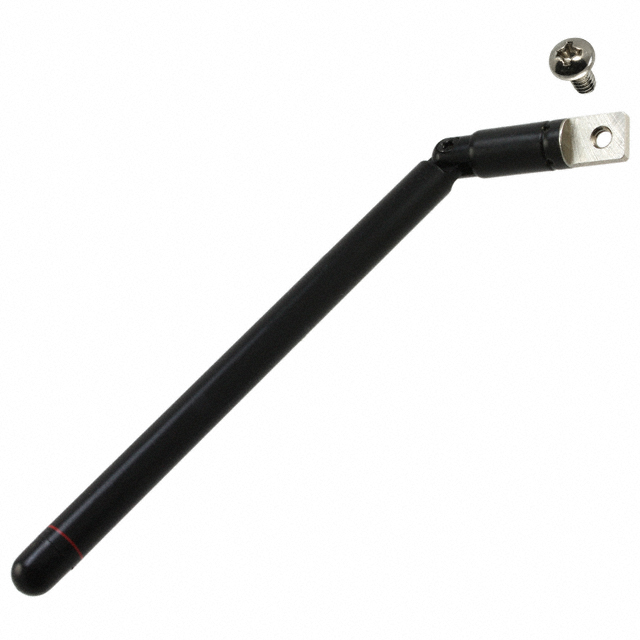

Specification	ANT-433-PW-RA

Antenna Type	Tilt, Whip
Applications	Alarms, Remote Control, Security Systems, ISM
Frequency (Center/Band)	433 MHz
Frequency Group	UHF
Frequency Group Maximum (UHF)	1 GHz
Frequency Group Minimum (UHF)	300 MHz
Frequency Range (Max)	443 MHz
Frequency Range (Min)	413 MHz
Gain	-0.7 dBi
Height (Max)	5.18 in
Mounting Type	Panel Mount
Number of Bands	1
RF Family/Standard	General ISM
Termination	Screw-Mount
VSWR	2

ANT-433 Series

Part	Gain	Frequency Group Maximum (UHF)	Frequency Group	Frequency Group Minimum (UHF)	Antenna Type	Termination	Applications	Frequency (Center/Band)	Mounting Type	VSWR	RF Family/Standard	Frequency Range (Max)	Frequency Range (Min)	Height (Max)	Number of Bands	Features	Termination Type	Frequency (Center)	Frequency (Band)	Power - Max	Frequency (Center/Band)	Frequency Range (Band 2) Maximum	Frequency Range (Band 1) Maximum	Frequency Range (Band 3) Minimum	Frequency Range (Band 3) Maximum	Frequency Range (Band 1) Minimum	Frequency Range (Band 2) Minimum	Return Loss	VSWR	VSWR Maximum	VSWR Minimum
TE Connectivity AMP Connectors ANT-433-PW-LP	-1.9 dBi	1 GHz	UHF	300 MHz	Straight Whip	Screw-Mount	Alarms ISM Remote Control Security Systems	433 MHz	Panel Mount	1.9	General ISM	439 MHz	427 MHz	1.988 in	1
TE Connectivity AMP Connectors ANT-433-WRT-SMA	-0.9 dBi	1 GHz	UHF	300 MHz	Dome		Alarms ISM Remote Control Security Systems		Panel Mount	1.9	General ISM	441 MHz	425 MHz	1.063 in	1	216mm Cable	SMA Male	400 MHz	410 MHz
TE Connectivity AMP Connectors ANT-433-HETH	1.9 dBi	1 GHz	UHF	300 MHz	Helical	Solder	Alarms ISM Remote Control Security Systems	433 MHz	Through Hole	2	General ISM	458 MHz	418 MHz	0.35 in	1
TE Connectivity AMP Connectors ANT-433-MHW-SMA-S	1.2 dBi	1 GHz	UHF	300 MHz	Center-Fed Double Whip		Alarms ISM Remote Control Security Systems	433 MHz	Adhesive	1.9	General ISM	453 MHz	413 MHz	5.709 in	1	2m Cable	SMA Male
TE Connectivity AMP Connectors ANT-433-CW-HWR-RPS	1.1 dBi	1 GHz	UHF	300 MHz	Tilt Whip		Alarms ISM Remote Control Security Systems	433 MHz	Connector Mount	2	General ISM	448 MHz	418 MHz	5.591 in	1		RP-SMA Male
TE Connectivity AMP Connectors ANT-433-CW-HD	0.7 dBi	1 GHz	UHF	300 MHz	Straight Whip		Alarms ISM Remote Control Security Systems	433 MHz	Connector Mount	2	General ISM	445 MHz	420 MHz	3.465 in	1		RP-SMA Male
TE Connectivity AMP Connectors ANT-433-USP-T	-9.8 dBi	1 GHz	UHF	300 MHz	Chip	Solder	Alarms ISM Remote Control Security Systems	433 MHz	Surface Mount	2	General ISM	437 MHz	429 MHz	0.103 in	1
TE Connectivity AMP Connectors ANT-433-CW-RH	-5.6 dBi	1 GHz	UHF	300 MHz	Straight Whip		Alarms ISM Remote Control Security Systems	433 MHz	Connector Mount	1.9	General ISM	440 MHz	425 MHz	2.008 in	1		RP-SMA Male
TE Connectivity AMP Connectors ANT-433-FPC-UFL-100	-6 dBi -5.4 dBi -2.4 dBi	1 GHz	UHF	300 MHz	Flat Patch		ISM LoRaWAN LPWA		Adhesive		General ISM			0.01 in	3	100mm Cable	I-PEX MHF1 U.FL			2 VA	410MHz 433MHz 450MHz	435 MHz	430 MHz	450 MHz	470 MHz	410 MHz	430 MHz	-7.4 dB -5.3 dB -4.3 dB	2.5 3.4 4.1	4.1	2.5
TE Connectivity AMP Connectors ANT-433-CW-RCS	-2.9 dBi	1 GHz	UHF	300 MHz	Right Angle Whip		Alarms ISM Remote Control Security Systems	433 MHz	Connector Mount	2	General ISM	440 MHz	425 MHz	2.106 in	1		RP-SMA Male
