FK20X7R2A155KR006
NRNDTDK Corporation
CAP CER 1.5UF 100V X7R RADIAL
FK20X7R2A155KR006
NRNDTDK Corporation
CAP CER 1.5UF 100V X7R RADIAL
Description
General part information
FK20X7R2A155KR006

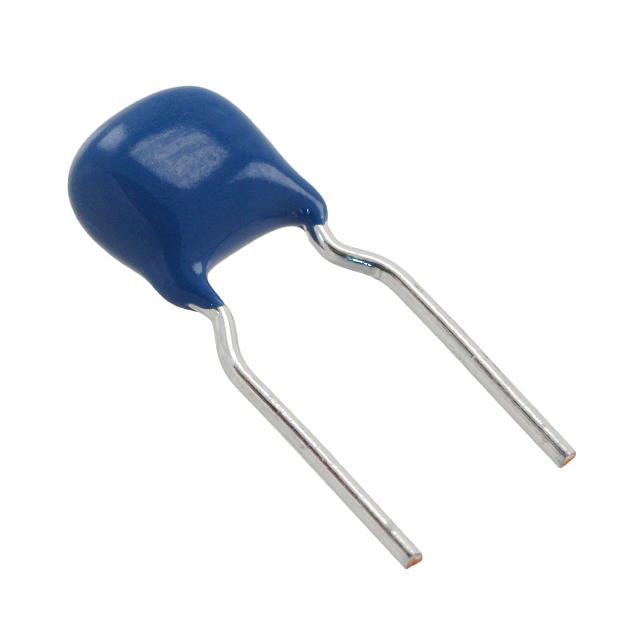

1.5 µF ±10% 100V Ceramic Capacitor X7R Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | FK20X7R2A155KR006 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1.5 µF |
| Height - Seated (Max) | 0.276 in |
| Lead Spacing | 0.197 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.217 in |
| Size / Dimension Width | 0.157 in |
| Temperature Coefficient | X7R |
| Tolerance | 10 % |
| Voltage - Rated | 100 VAC/DC |
