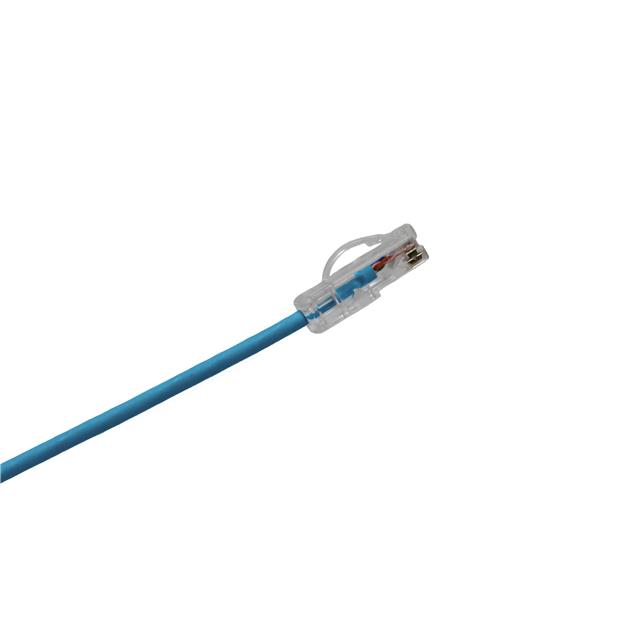

MA-C6B-04.5-28LSZH-F

Active

Pactech

ARCH LATCH RJ45 C6 UTP 04.5' BL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MA-C6B-04.5-28LSZH-F

Active

Pactech

ARCH LATCH RJ45 C6 UTP 04.5' BL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MA-C6B-04.5-28LSZH-F	MA-C6B Series

Cable Type	Round LSZH Cable	Round LSZH Cable, Round Cable
Color	Blue	Blue
Connector Type	Plug to Plug	Plug to Plug
Features	UTP Soft PVC, Arch Latch Tangle Free, Easy Plug-in and Release, 28AWG	UTP Soft PVC, Arch Latch Tangle Free, Easy Plug-in and Release, 28AWG, 24AWG, UTP
Features	3.8 mm	3.8 - 6.3 mm
Length	1.37 m	1.37 - 1070 m
Length	-	0.5 - 90 ft
Length	-	1.22 - 762 m
Length [x]	4.5 ft	2 - 100 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Shielding	Unshielded	Unshielded
Style	Cat6	Cat6

MA-C6B Series

ARCH LATCH RJ45 C6 UTP 50' BL

...

Part	Length	Length [x]	Color	Connector Type	Number of Positions/Contacts	Features	Features	Mounting Type	Cable Type	Style	Shielding	Length	Length [x]
Pactech MA-C6B-50-28LSZH-F	15.24 m	50 ft	Blue	Plug to Plug	8p8c (RJ45, Ethernet)	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)	Round LSZH Cable	Cat6	Unshielded
Pactech MA-C6B-06.5-28LSZH-F	1.98 m		Blue	Plug to Plug	8p8c (RJ45, Ethernet)	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)	Round LSZH Cable	Cat6	Unshielded	6.5 ft
Pactech MA-C6B-0.5-28PVC-F	152.4 mm		Blue	Plug to Plug	8p8c (RJ45, Ethernet)	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)	Round Cable	Cat6	Unshielded	0.5 ft
Pactech MA-C6B-07.5-28PVC-F	2.28 m		Blue	Plug to Plug	8p8c (RJ45, Ethernet)	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)	Round Cable	Cat6	Unshielded	90 in
Pactech MA-C6B-30-28LSZH-F	9.14 m		Blue	Plug to Plug	8p8c (RJ45, Ethernet)	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)	Round LSZH Cable	Cat6	Unshielded	30 '
Pactech MA-C6B-100-28PVC-F	30.48 m	100 ft	Blue	Plug to Plug	8p8c (RJ45, Ethernet)	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)	Round Cable	Cat6	Unshielded
Pactech MA-C6B-30-28PVC-F	9.14 m		Blue	Plug to Plug	8p8c (RJ45, Ethernet)	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)	Round Cable	Cat6	Unshielded	30 '
Pactech MA-C6B-100-24PVC-F	30.48 m	100 ft	Blue	Plug to Plug	8p8c (RJ45, Ethernet)	24AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP	6.3 mm	Free Hanging (In-Line)	Round Cable	Cat6	Unshielded
Pactech MA-C6B-75-24PVC-F		75 ft	Blue	Plug to Plug	8p8c (RJ45, Ethernet)	24AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP	6.3 mm	Free Hanging (In-Line)	Round Cable	Cat6	Unshielded		22.86 m
Pactech MA-C6B-03-28PVC-F	91.44 cm	3 ft	Blue	Plug to Plug	8p8c (RJ45, Ethernet)	28AWG, Arch Latch Tangle Free, Easy Plug-in and Release, UTP Soft PVC	3.8 mm	Free Hanging (In-Line)	Round Cable	Cat6	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.23
		10	$ 10.89
		20	$ 10.67
		40	$ 10.33

Description

General part information

MA-C6B Series

Modular Cable Plug to Plug 8p8c (RJ45, Ethernet) 4.50' (1.37m) Unshielded
