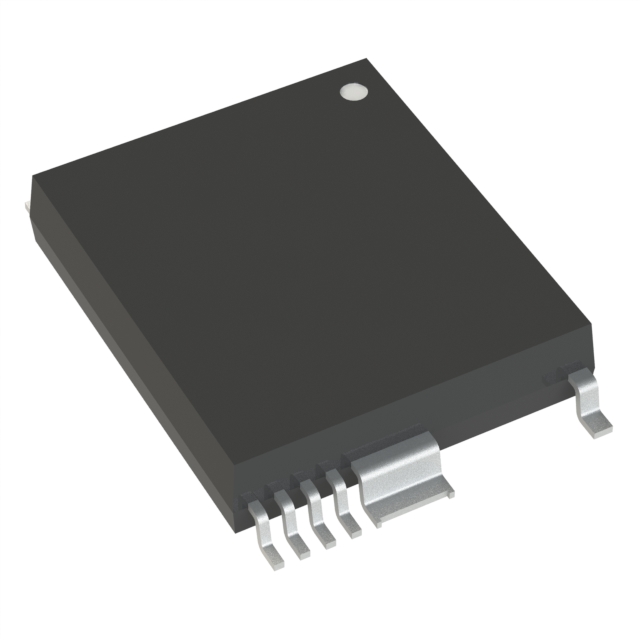

INN4377F-H341-TL
ActivePOWER INTEGRATIONS
135 W (85-265 VAC)
INN4377F-H341-TL
ActivePOWER INTEGRATIONS
135 W (85-265 VAC)
Description
General part information
INN4377F-H341-TL
Converter Offline Flyback, Secondary Side SR Topology 60kHz ~ 80kHz InSOP-T28D
Technical Specifications
Parameters and characteristics for this part
| Specification | INN4377F-H341-TL |
|---|---|
| Control Features | EN, Soft Start, Frequency Control |
| Fault Protection | UVLO, Short Circuit, Current Limiting, Over Temperature, Over Voltage, Over Load |
| Frequency - Switching (Max) | 80 kHz |
| Frequency - Switching (Min) | 60 kHz |
| Internal Switch(s) | Yes |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output Isolation | Isolated |
| Package Leads | 20 Leads |
| Package Length | 0.425 in |
| Package Name | 28-PowerSMD Module, InSOP-T28D |
| Package Width | 10.8 mm |
| Power (Watts) | 145 W |
| Topology | Secondary Side SR, Flyback |
| Voltage - Breakdown | 750 V |
| Voltage - Supply (Vcc/Vdd) Maximum | 265 V |
| Voltage - Supply (Vcc/Vdd) Minimum | 85 VAC |
