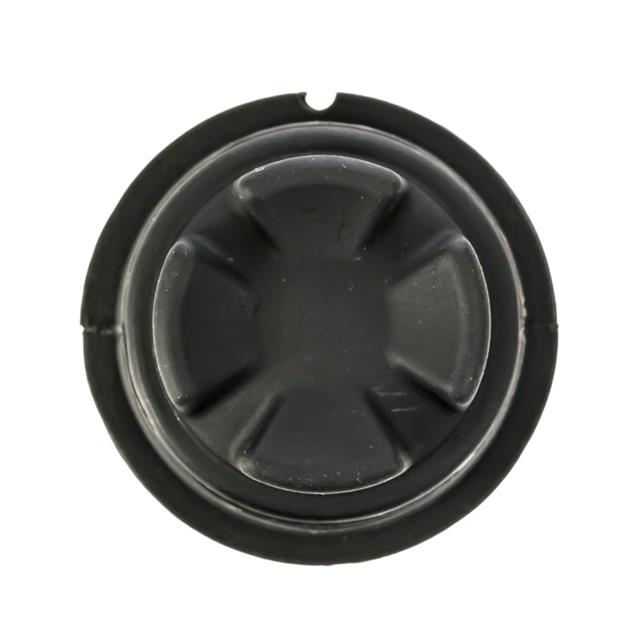

TS1-4-S-A-2-BK
ActiveRuffy Controls Inc.
SWITCH JOYSTICK CASTLE 50MA 12V
TS1-4-S-A-2-BK
ActiveRuffy Controls Inc.
SWITCH JOYSTICK CASTLE 50MA 12V
Description
General part information
TS1-4-S-A-2-BK
Joystick, 2 - Axis Analog (Hall Effect) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | TS1-4-S-A-2-BK |
|---|---|
| Actuator Type | Castle |
| Current Rating | 50 mA |
| Electrical Life (Cycles) | 300000 |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Analog (Hall Effect) |
| Switch Function | 4-Way Directional |
| Termination Style | Wire Leads with Connector |
| Type | Joystick, 2 - Axis |
| Voltage - Supply | 5 VDC |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
