XSAV11801TF
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M30, 10MM, SPST-NC, 24 TO 210V
XSAV11801TF
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M30, 10MM, SPST-NC, 24 TO 210V
Description
General part information
XSAV11801TF

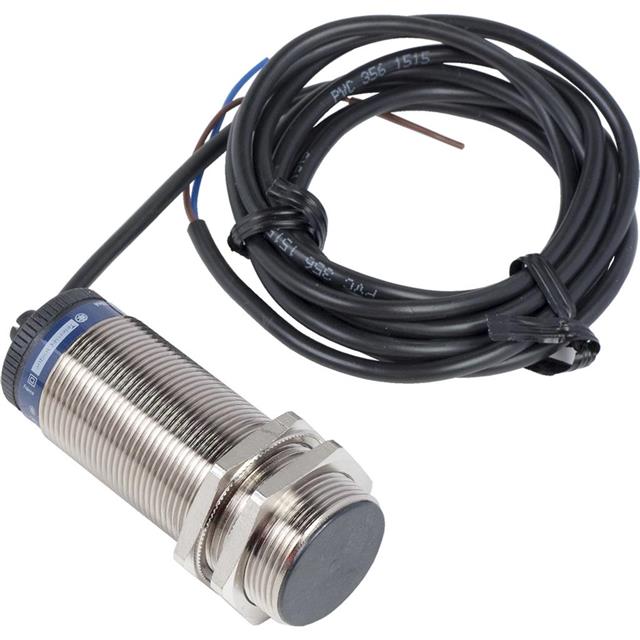

Inductive Proximity Sensor 0.394" (10mm) IP67 Cylinder, Threaded - M30
Technical Specifications
Parameters and characteristics for this part
| Specification | XSAV11801TF |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | NC, 2-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 0.394 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply | 24VAC/DC ~ 240VAC, 210VDC |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
| Voltage - Supply (Option 1) | 210 VDC |
| Voltage - Supply (Range 1 Maximum) | 240 VAC |
| Voltage - Supply (Range 1 Minimum) | 24 VAC |
| Voltage - Supply (Range 2 Maximum) | 210 VDC |
| Voltage - Supply (Range 2 Minimum) | 210 VDC |
| Voltage - Supply Maximum | 240 VAC |
| Voltage - Supply Minimum | 24 VAC |
