F4-24
ActiveCHASSIS MOUNT TRANSFORMER, QUICK PACK, SPLIT BOBBIN, 115V, 24V, 6 VA, 50HZ / 60HZ
F4-24
ActiveCHASSIS MOUNT TRANSFORMER, QUICK PACK, SPLIT BOBBIN, 115V, 24V, 6 VA, 50HZ / 60HZ
Description
General part information
F4-24

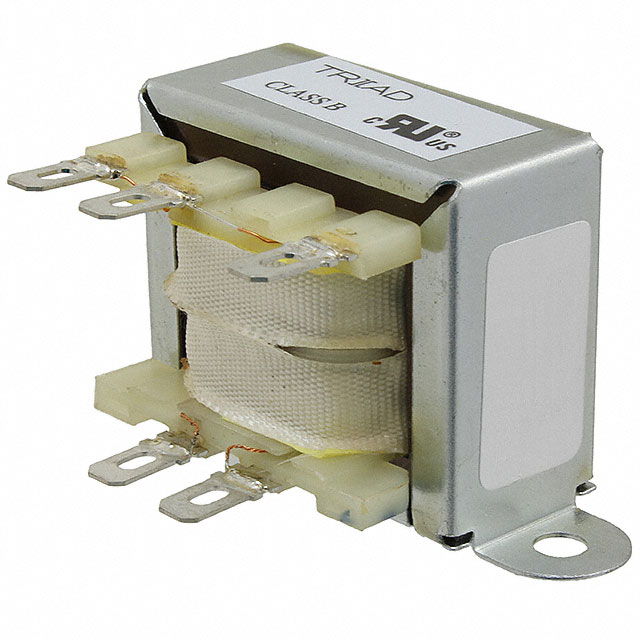

The F4-24 is a 6VA chassis-mount Quick Pack™ Power Transformer with 115VAC @ 50/60Hz primary and 24V CT @ 0.25A secondary. It offers a significant reduction in size and weight over a standard transformer. This transformer can be used for a wide variety of applications. It is bobbin wound for reduced size and small operating space. The Split bobbin non concentric winding eliminates costly electrostatic shielding. Termination is suitable for quick connects or soldering.
Technical Specifications
Parameters and characteristics for this part
| Specification | F4-24 |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 250 mA |
| Height - Seated (Max) | 34.93 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 6 W |
| Primary Winding(s) | Single |
| Quick Connect Size (0.187") | 0.187 in |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 60.33 mm |
| Size / Dimension Width | 1.25 in |
| Termination Style | Solder, Quick Connect |
| Type | Laminated Core |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 24 V |
| Weight | 0.44 lb |
