6-2366515-2
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS DYNAMIC D1000 SLIM REC HSG 12P Y KEY NA
6-2366515-2
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS DYNAMIC D1000 SLIM REC HSG 12P Y KEY NA
Description
General part information
6-2366515-2

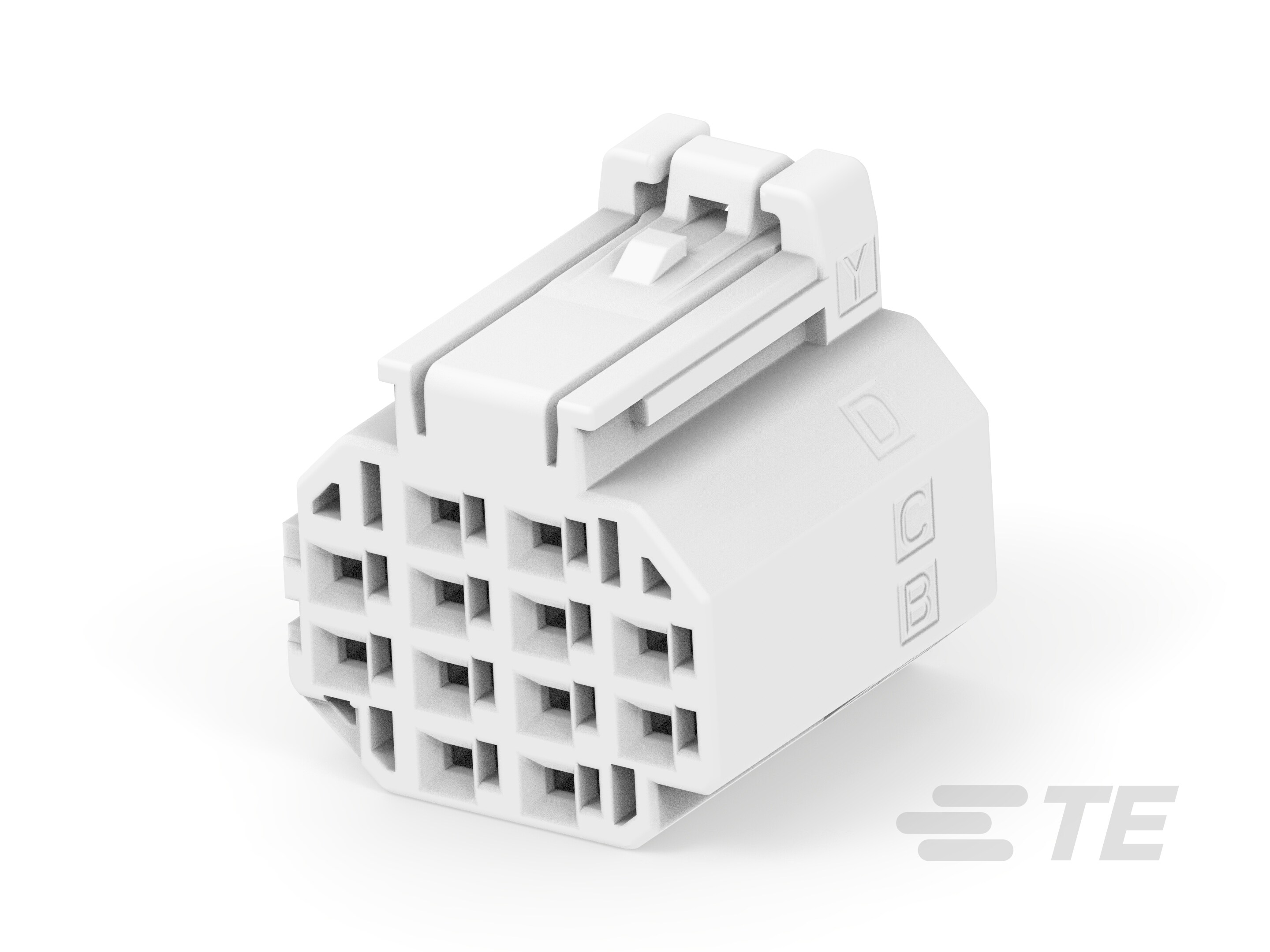

Housing, Receptacle, Wire-to-Wire, 12 Position, 2.7 mm [.106 in] Centerline, Crimp, 4 Row, Natural, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-2366515-2 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polyester, Thermoplastic, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.106 in |
| Row Spacing | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
