FMC0404317-12
ActiveFairview Microwave
CBL ASSY SMAPLUG-SMAPLUG 12
FMC0404317-12
ActiveFairview Microwave
CBL ASSY SMAPLUG-SMAPLUG 12
Description
General part information
FMC0404317-12

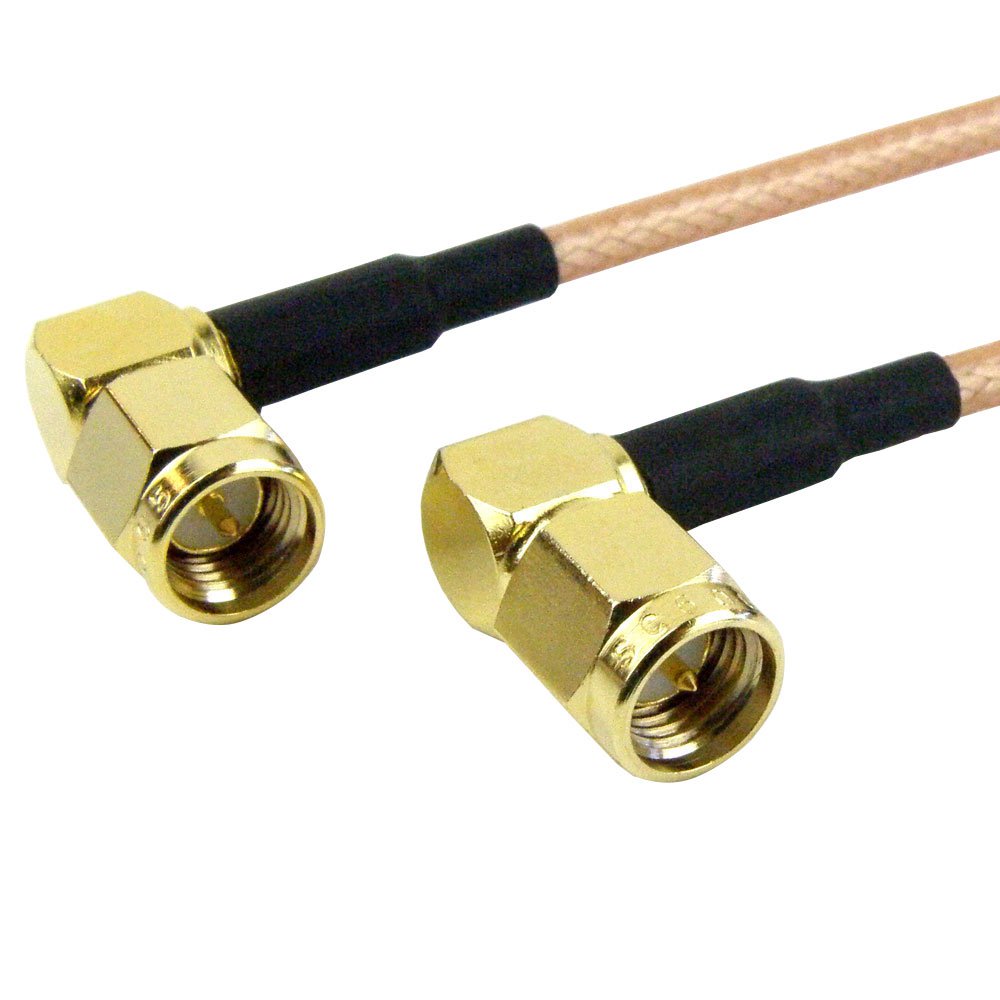

Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC0404317-12 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 DS |
| Color | Beige |
| Frequency - Max | 3 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
